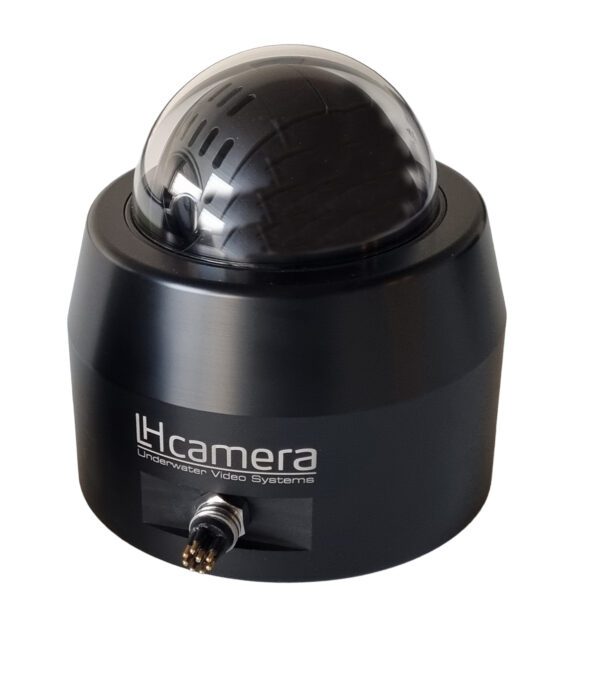

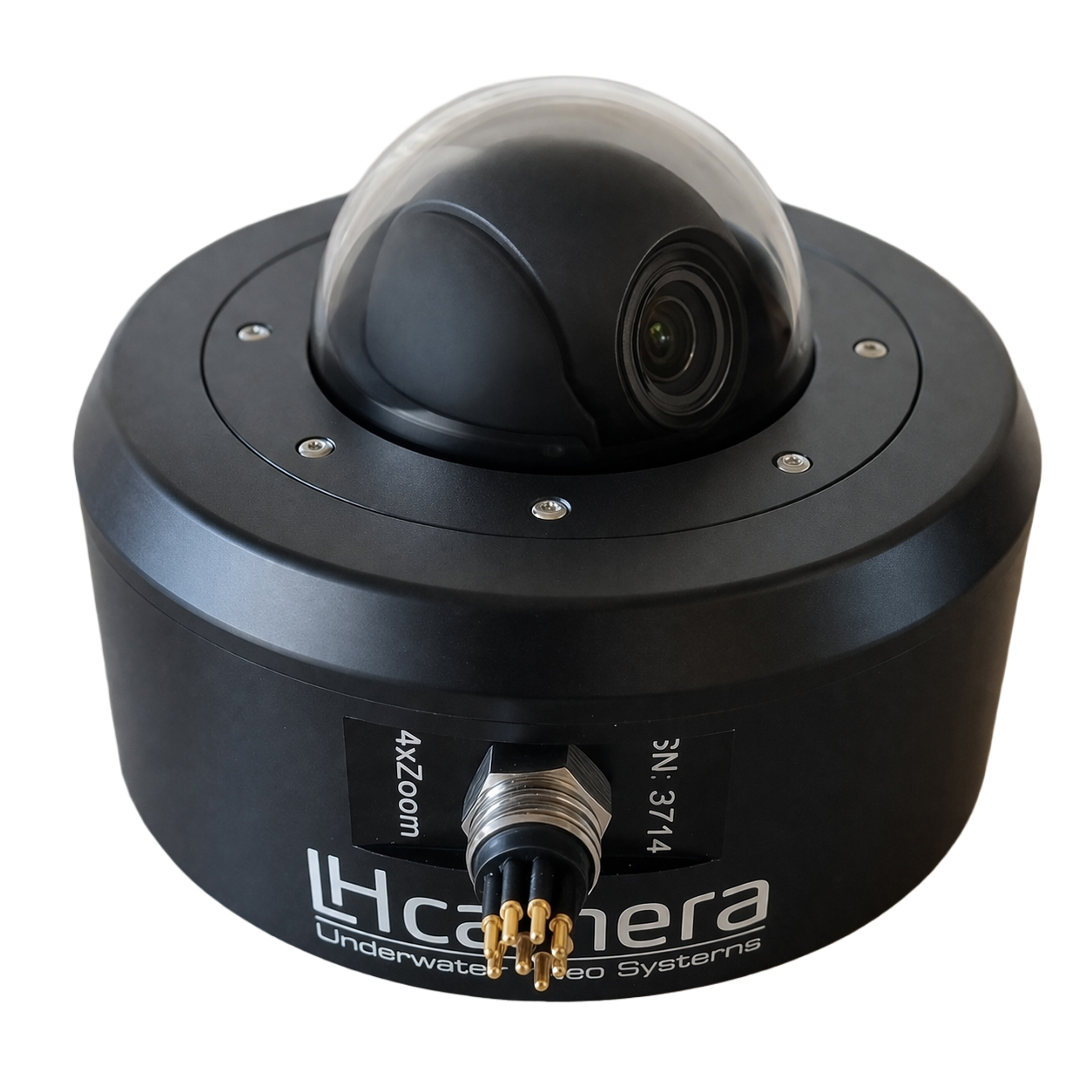

HD Subsea IP Dome Camera with Pan-Tilt-Zoom (PTZ)
This professional-grade underwater IP Dome PTZ Camera is engineered for demanding subsea inspections and 24/7 video monitoring. With high light sensitivity and an ultra-wide 104° fisheye field of view, it delivers crystal-clear footage even in low-visibility marine environments.
Designed and built by LH Camera, this dome camera is a trusted choice in industries such as:
- Aquaculture & fish farming
- ROV piloting and support
- Offshore energy & wind farms
- Dredging and port operations
- Subsea construction and inspection
The dome housing is built from robust materials and pressure-tested to 10 bar, ensuring reliable operation under harsh underwater conditions. With HD 2MP resolution and available in 12x or 32x optical zoom variants, this camera provides the detail and flexibility required for professional inspections.
Technical Details:
- Resolution: 2 Megapixels (HD)
- Zoom: 12x or 32x optical
- Viewing angle: 104° fisheye
- Light sensitivity: High-performance low-light imaging
- Pressure tested: 10 bar
- Connectors: MCBH8M, DBH8M or DBH13M
Contact LH Camera to learn more or to configure your dome camera for your specific underwater project.
Subsea Cam POM IP/PTZ 12xZoom
TECHNICAL SPECIFICATIONS:
- Diameter 178 mm.Height 185 mm, weight in air 4,1 Kg. Material Pom.
- Sensor 1/2.8 2 Megapixel CMOS. Minimum Illumination 0.005Lux/F1.6.
- Focal Length 5,3~64 mm. 12X Optical Zoom. Angel of view 58°.
- Pan/Tilt Range Pan 0°~360° endless. Tilt 90°.
- Max Resolution 2 MP 1920×1080 pixsel 1~25/30fps. Video compression H.265/H.264.
- Bit Rate Control CBR/VBR H.265/H264 448~8192 Kbps. Low Latency Approx 120 ms.
- Gain Control Auto/Manual. White Balance Auto/Manual.
- Interoperability ONVIF Profile S&G, API. Ethernet (10/100Base-T).
- Protocol IPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP, ICMP,IGMP,SNMP,RTSP,RTP, SMTP, NTP,DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
- Mounted with Subsea DBH13M/MCBH8M connector for Power Supply 24 VDC/PoE+(802.3at) or Subsea DBH8M PoE+(802.3at) supply. Power Consumption approx 13W. Other connector on request
- Depth rating 100 meter.
Subsea Cam POM IP/PTZ 32 Zoom
TECHNICAL SPECIFICATIONS:
- Diameter 178 mm.Height 218 mm, weight in air 4,9 Kg. Material Pom.
- Sensor 1/2.8 2 Megapixel STARVIS CMOS. Minimum Illumination Color 0.005Lux/F1.6
- Focal Length 4,5~144 mm. 32X Optical Zoom. Field of view H:58,4°-2,3° V:33,4°-1,3° D:66,4° -3,4°
- Pan/Tilt Range Pan 0°~360° endless. Tilt 90°.
- Max Resolution 4 MP 2560Hx1440V pixsel 1~50/60 fps. Video compression H.265/H.264.
- Bit Rate Control CBR/VBR H264/H265 3~20.480 Kbps. Low Latency Approx 120 ms.
- Gain Control Auto/Manual. White Balance Auto/Manual. WDR 120dB.
- Interoperability ONVIF Profile S&G, CGI. Ethernet (10/100Base-T).
- Protocol IPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP, ICMP,IGMP,SNMP,RTSP,RTP, SMTP, NTP,DHCP, DNS,PPPOE,DDNS,FTP.
- Mounted with Subsea DBH13M/MCBH8M connector for Power Supply 24 VDC/PoE+(802.3at) or Subsea DBH8M PoE+(802.3at) supply. Power Consumption approx 16W. Other connector on request.
- Depth rating 100 meter.
