Brand new range of compact subsea LED lamps. Ideal for professional diving and subsea inspections and other documentation tasks. Our range includes different variants of compact products to match a wide variety of uses.
All our LED lamps have built-in thermal protection. The lamp automatically switches off if it overheats and switches on again when it has cooled. Available as spotlights and floodlights that provide maximum light spread. Light intensity from 1300-5000 lumen, depending on model. Optional stepless adjustment of light intensity with our dimmer module. Compatible with a wide range of power supplies from 12~32 VDC. Fitted with stainless steel Subsea connector MCBH3MSS.
Lamps available in three variants:
LED 1300 Flood-Pom
LED 2100 Flood-316
LED 2700 Flood-Alu
LED 5000 Flood-Alu
Functions and benefits
- Compact subsea LED lamp
- Spotlight or floodlight
- Integral thermal protection
- Lightweight subsea LED lamp
- Stepless adjustment of light intensity
- Wide power supply range
Applications
- For professional diving applications
- Subsea inspection work
- Fish farming applications
- ROV systems
- Subsea observatory systems
- Trawl camera systems
Underwater ROV Lights with Powerful LED Video Lights
LH Camera has developed two professional Subsea ROV video lamp with powerful light of 2700 and 5000 lumens with video light spread of 120°. The video lamp comes in a dimmable version with Subsea MCBH3M connector installed as default. The lamp is pressure tight to 50 bar. The video lamp comes in a dimmable version and with Subsea connector installed. Also availabel with other types of connector on request.

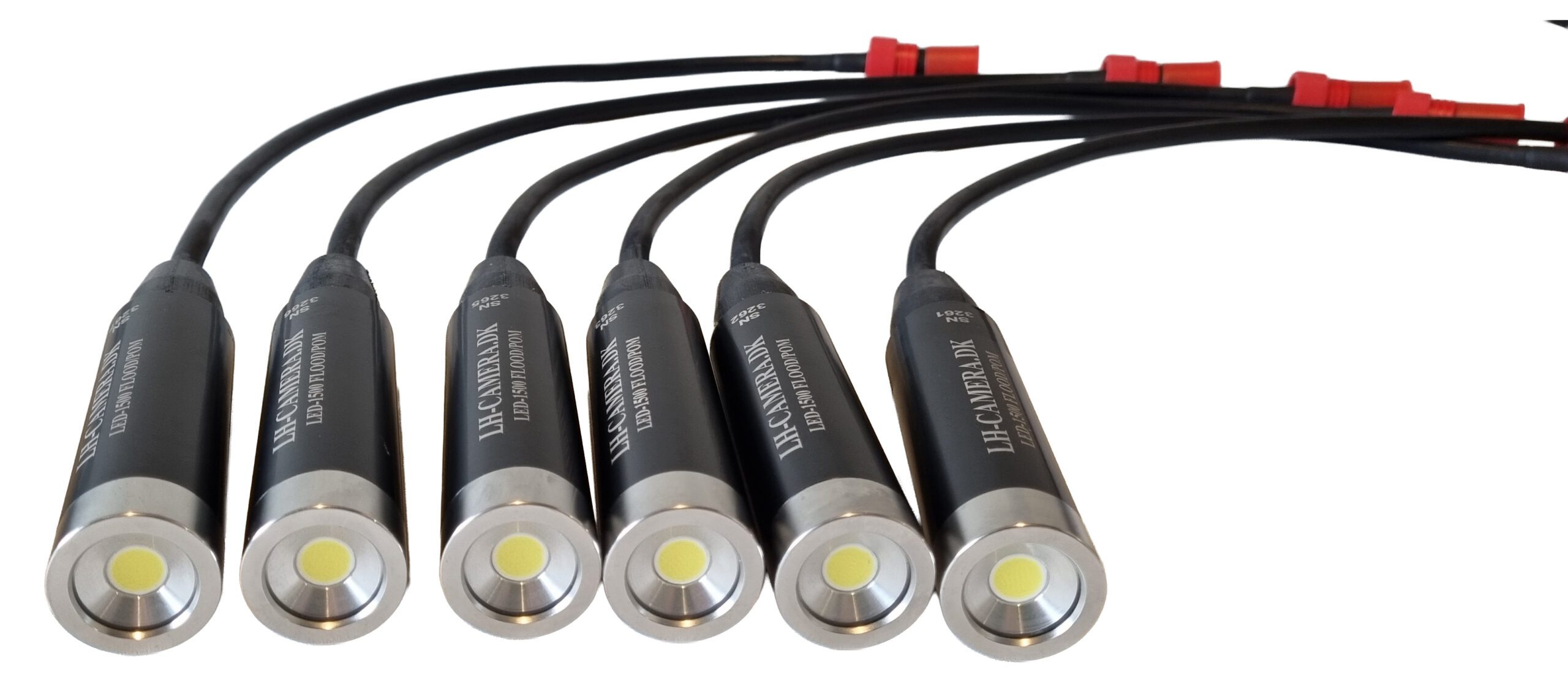

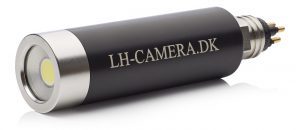

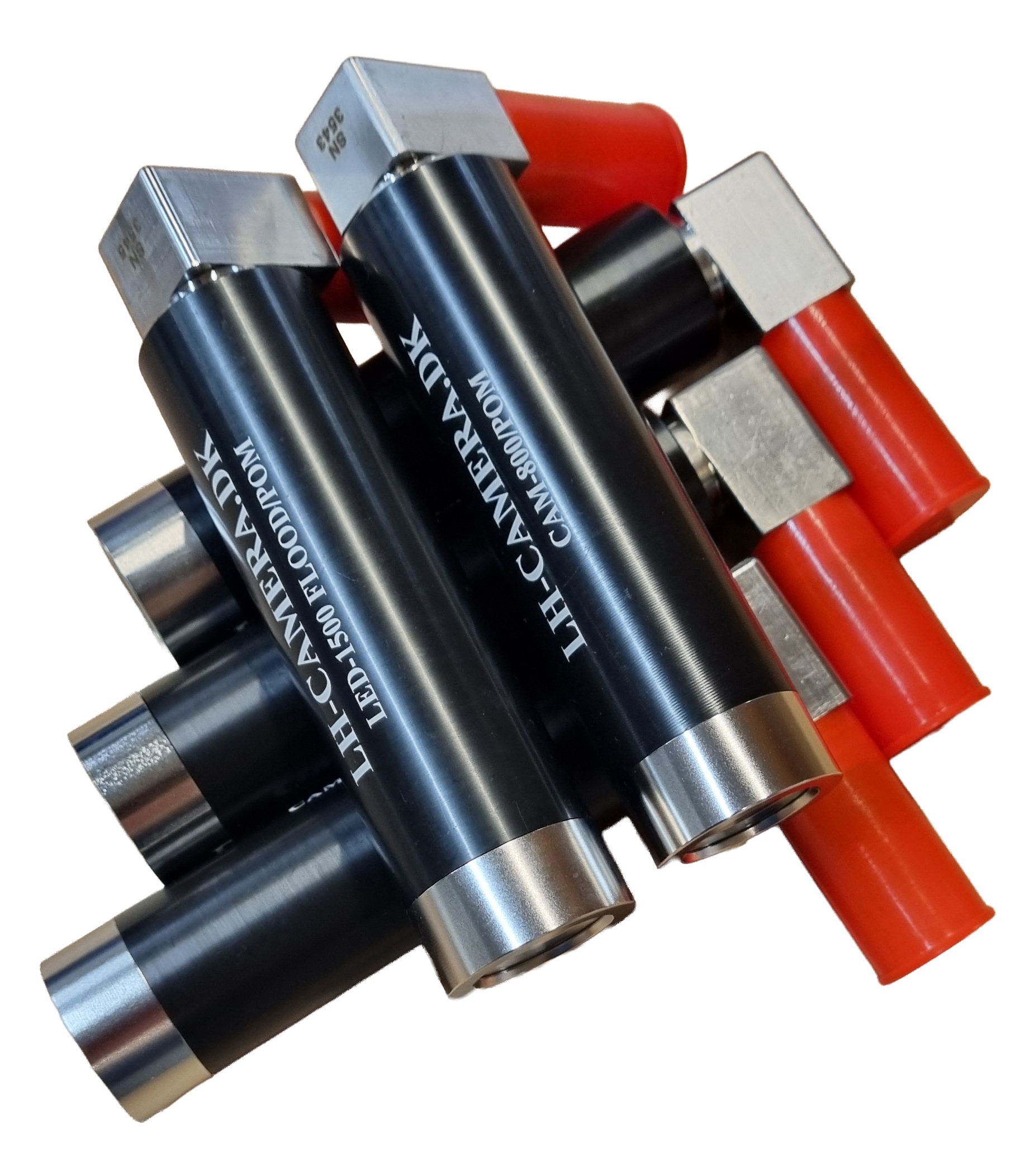

TECHNICAL SPECIFICATIONS: LED Compact 1500 Lumens
- Diameter 30 mm.Length 127 mm, weight 124 grams.
- Lamp housing POM and AISI 316 steel. Borosilicate glass window.
- Power supply 24 VDC (12v only on request and is without dimmer).
- 1500 Lumen. Power consumption @0,40A/24VDC
- Beam angle in Air 90° and 72° in water.
- Colour Temperature 6500 Kelvin or 4000 kelvin on request.
- Operating temperature -15 to + 55 °C. With build in auto Thermal protection.
- Standard Wiring Pin1 GND Pin2 Power +VDC Pin3 Dimming (5-0 VDC)
- Depth rating 100 Meters.

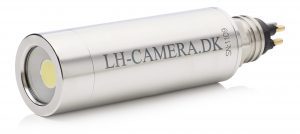

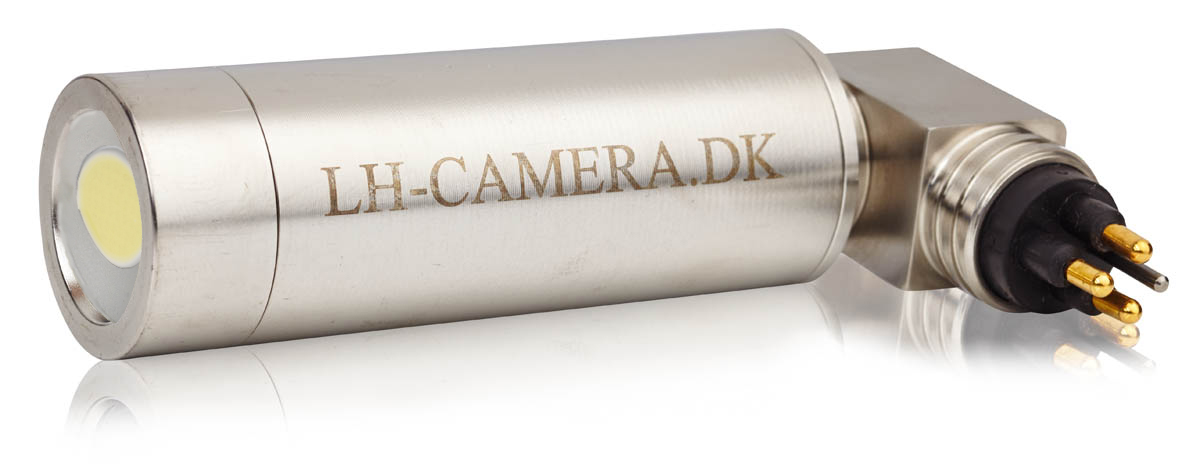

TECHNICAL SPECIFICATIONS: LED Compact 2100 Lumens
- Diameter 30 mm.Length 143 mm, weight in air 385 grams.
- Stainless Steel AISI 316 housing.Window Borosilicate glass.
- Power supply 24 VDC.
- 2100 Lumen. Power consumption 0.84A.
- Beam angle in Air 90° and 72° in water.
- Colour Temperature 6500 Kelvin or 4000 kelvin on request.
- Operating temperature -15 to + 55 °C. With build in auto Thermal protection.
- Standard Wiring Pin1 GND Pin2 Power +VDC Pin3 Dimming (5-0 VDC)
- Depth rating 500 Meters.

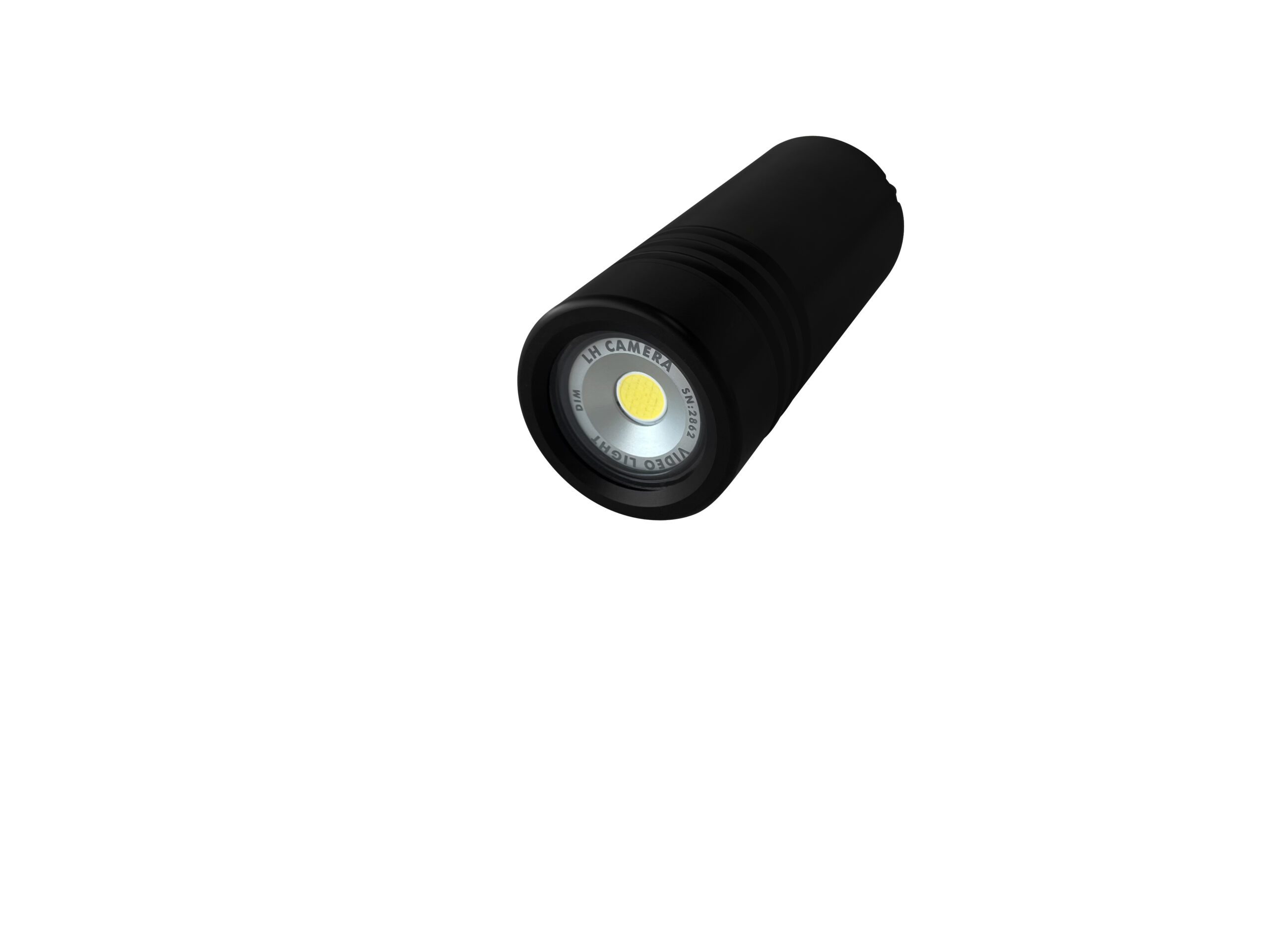

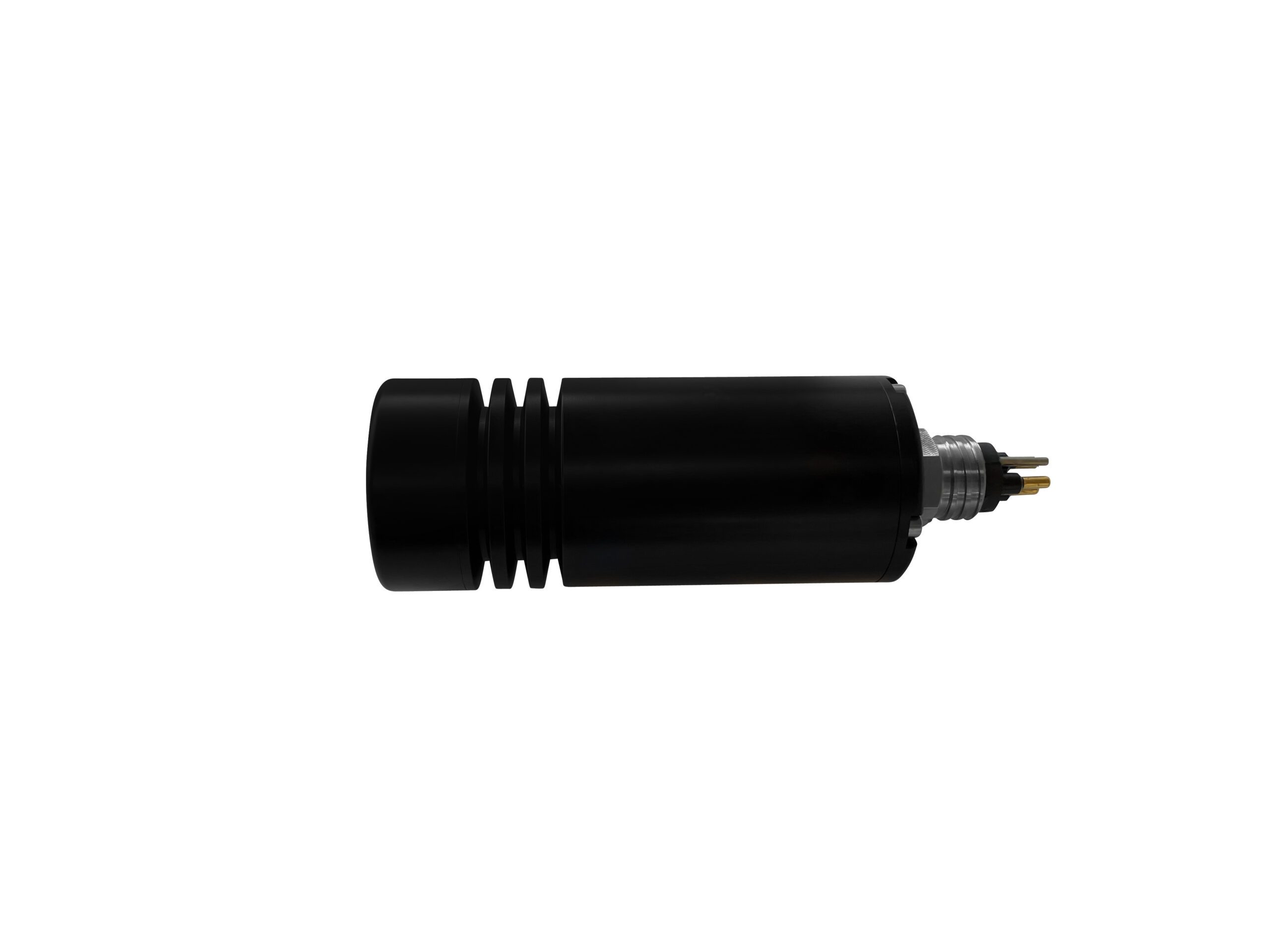

TECHNICAL SPECIFICATIONS: 2700 Lumens
- Diameter 45 mm. Length 125 mm. Window/Lens Borosililicate glass.
- The video lamp is made of hard anodized aluminum 6082.
- Power up to 2700 lumens.
- Wide angle 120°
- Color temperature comes in 4000 and 6500 Kelvin.
- Voltage 24 VDC.
- Can be installed with different types of Subsea connectors.
- Standard Wiring Pin1 GND Pin2 Power +VDC Pin3 Dimming (5-0 VDC)
- Depth rating 500 Meters.
TECHNICAL SPECIFICATIONS: 5000 Lumens
- Diameter 45 mm. Length 125 mm. Window/Lens Borosililicate glass.
- The video lamp is made of hard anodized aluminum 6082.
- Power up to 5000 lumens.
- Wide angle 120°
- Color temperature comes in 4000 Kelvin.
- Voltage from 40~60 VDC.
- Can be installed with different types of Subsea connectors.
- Standard Wiring Pin1 GND Pin2 Power +VDC Pin3 Dimming (5-0 VDC)
- Depth rating 500 Meters.
