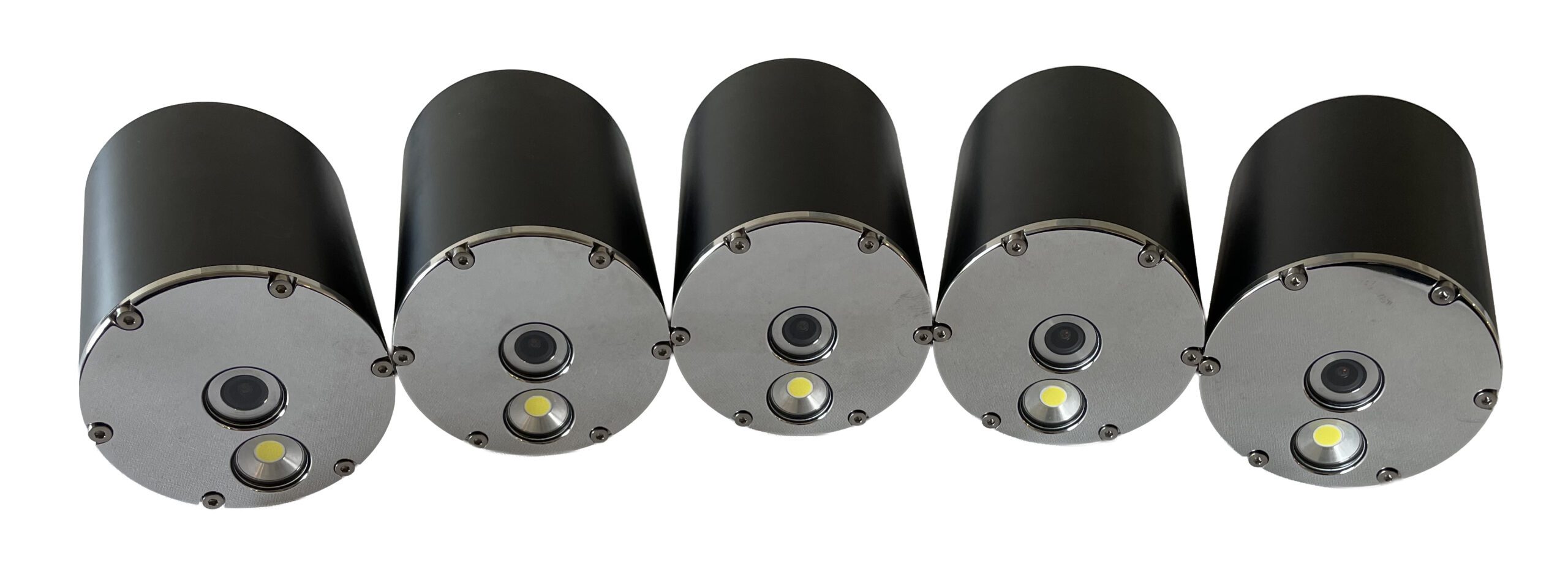

Subsea IP Underwater Camera with Built-in Dimmable 850 Lumen LED Lights

This advanced subsea IP camera features powerful built-in dimmable LED lights delivering 850 lumens, ensuring exceptional illumination for clear, detailed underwater video footage. Designed specifically for ROVs and other remote underwater systems, the camera housing is rugged and IP-rated for harsh subsea environments.

The camera streams real-time high-definition video over a reliable IP connection to surface control units, enabling efficient underwater inspection, monitoring, and documentation.

Ideal for applications such as scientific research, military operations, offshore construction, and underwater repair, this camera combines cutting-edge IP technology with superior lighting to capture sharp, high-quality images in dark and challenging underwater conditions.

Its robust design and integrated LED lighting make it the perfect solution for demanding subsea tasks requiring both visual clarity and data reliability.

Subsea Cam POM 100IP-led                                                                                       Subsea Cam 316 80IP-led

Applications:

• • Rov (Remotely Operated Vehicles )
  • Fixed mounting in constructions
  • Underwater inspection
  • Marine Research

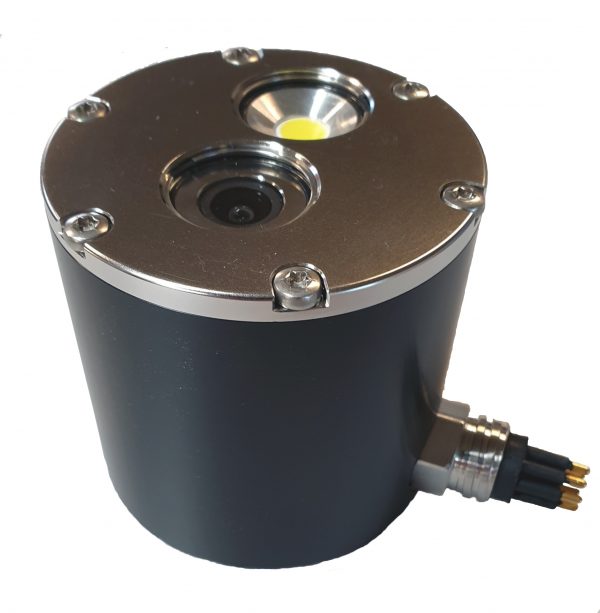

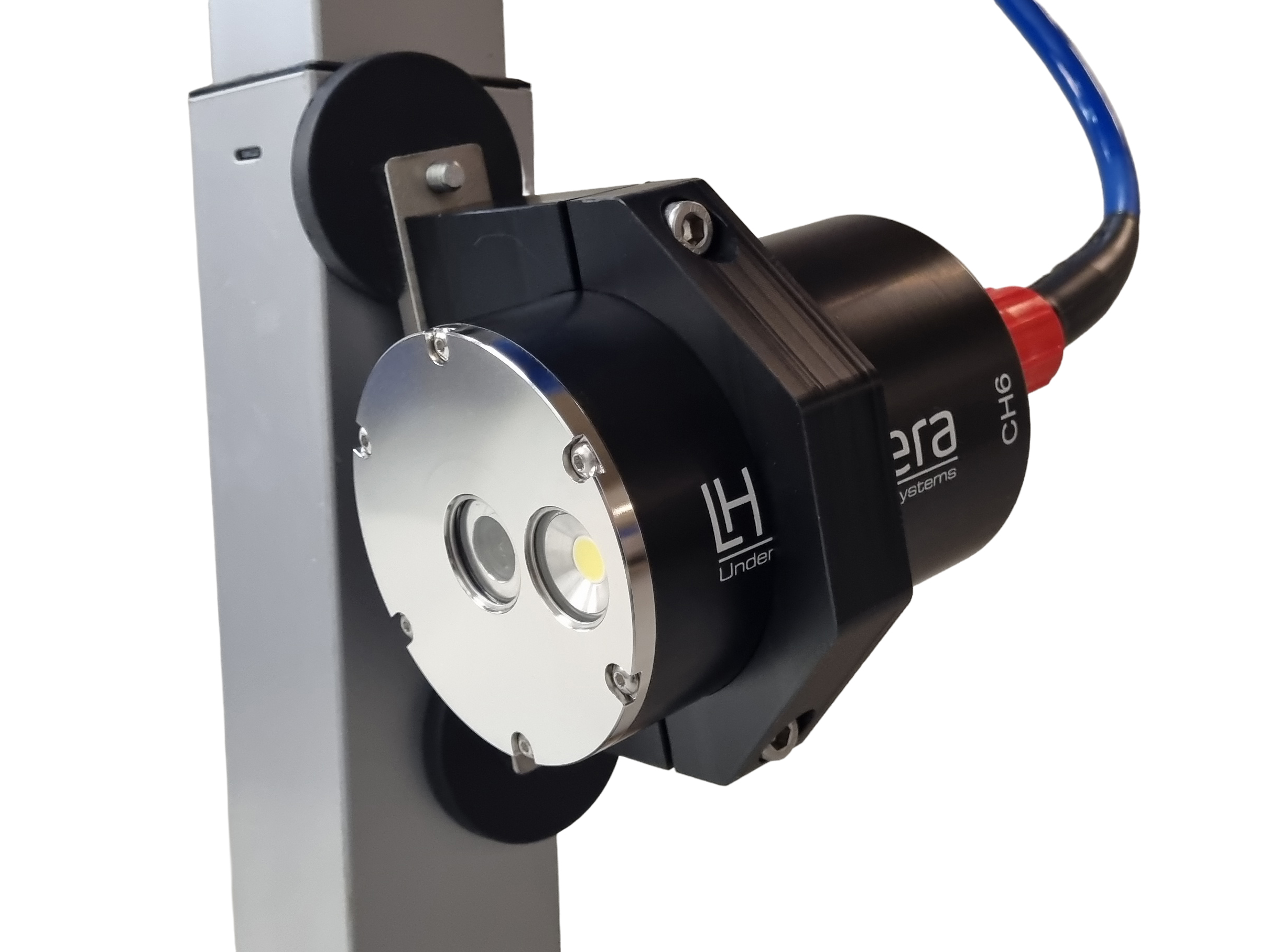

Subsea Cam POM 100IP-LED

Technical Specifications

• Camera housing in Pom and AISI316 front. Depth rating 100.
• Length 135 mm. Diameter 100 mm. Window in glass.
• Sensor 1/2.7″ progressive scan CMOS. Minimum Illumination 0.005Lux/F1.6.
• Lens 2.8mm Fixed Focus length, field of view H 102°V 71°.
• Max Resolution (2592×1944 20 fps)-(1920×1080 25 fps ). Low Latency Approx. 120 ms.
• Video Format H.264-H265+
• Standard Streaming protocol RTSP-RTP-UDP
• Interoperability ONVIF-PISA-CGI.-Milestone. Web Viewer IE, Chrome, Firefox, Safari.
• Ethernet (10/100Base-T).
• Build-in 850 lumen dimmable LED light. Dimming 0-5 VDC
• Mounted with Subsea DBH13M/MCBH8M connector for Power Supply 24 VDC/PoE+(802.3at). Power Consumption approx
  13W. Other connector on request.

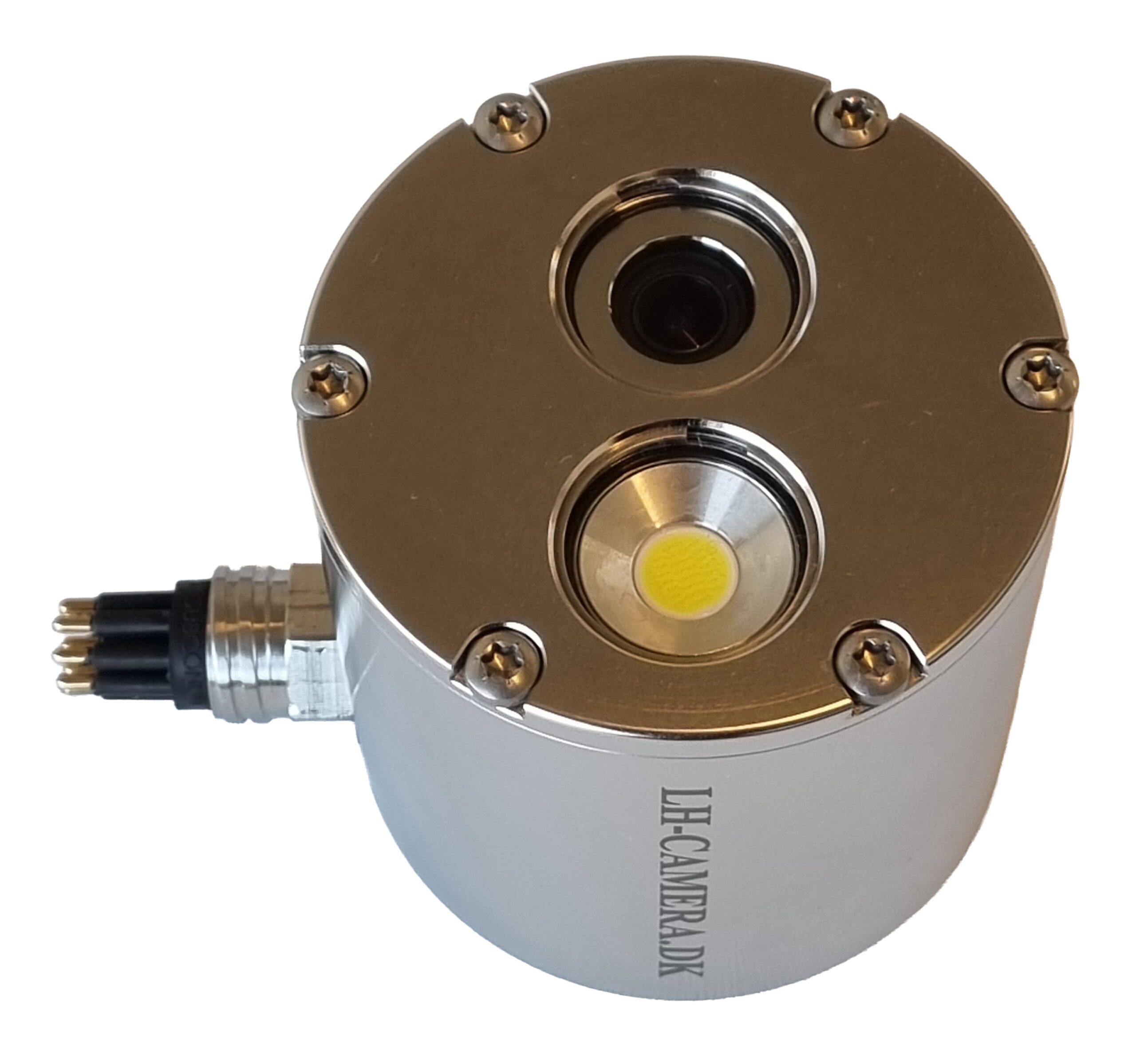

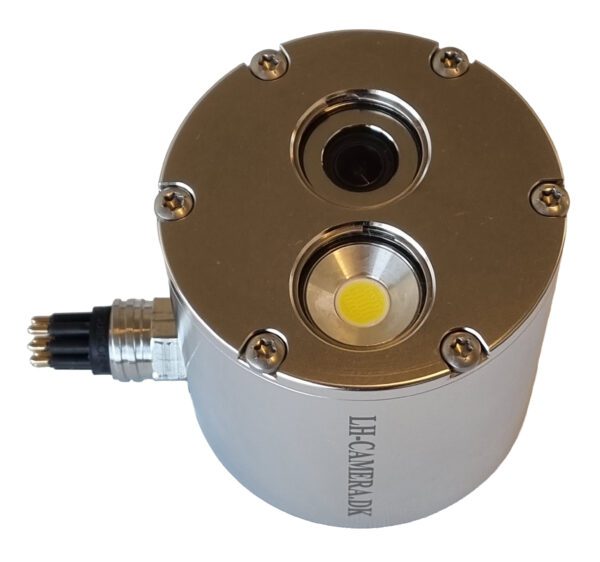

Subsea Cam 80IP-LED

Technical Specifications

• Camera housing in AISI 316 or Pom material. Depth rating 100 ~500 meters.
• Length 80 mm. Diameter 80 mm. Window in glass.
• Sensor 1/2.7″ progressive scan CMOS. Minimum Illumination 0.005Lux/F1.6.
• Lens 2.8mm Fixed Focus length, field of view H 102°V 71°.
• Max Resolution (2592×1944 20 fps)-(1920×1080 25fps). Low Latency Approx. 120 ms.
• Video Format H.264-H265+
• Standard Streaming protocol RTSP-RTP-UDP
• Interoperability ONVIF-PISA-CGI.-Milestone. Web Viewer IE, Chrome, Firefox, Safari.
• Ethernet (10/100Base-T).
• Build-in 850 lumen dimmable LED light. Dimming 0-5 VDC
• Mounted with Subsea DBH13M/MCBH8M connector for Power Supply 24 VDC/PoE+(802.3at). Power Consumption approx
  13W. Other connector on request.
