High-Quality Subsea HD Camera for Diving, ROV & Marine Applications

LH Camera designs and manufactures a wide range of high-performance subsea color cameras tailored for commercial diving, ROV systems, marine research, and fish farming.

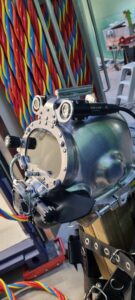

Our HD subsea camera features outstanding image clarity and low-light performance, built around the latest camera technologies – primarily high-end Sony imaging components. The compact housing makes it ideal for integration on diver helmets and full-face dive masks.

We offer models ranging from analog to high-definition, all engineered for use in harsh underwater environments with depth ratings from 100 to 2000 meters. Custom versions are available for deep-sea exploration beyond standard limits.

All cameras come with standard subsea connector options, including:

• m = MCBH4MSS
• r =  MCBHRA4MSS
• c = MCIL4M

Other connector types can be installed upon request. These cameras are ideal for operations requiring reliable HD video capture in subsea environments, including underwater inspection, construction, and scientific research.







              Subsea Cam POM 30HD-m                                                      Subsea Cam 316 30HD-r                                                Subsea Cam POM 30HD-c





Subsea Cam 30 Applications

• Commercial Diving
• Aquaculture industry
• Land-based fish farms
• Offshore underwater inspection
• Wind power industry
• General underwater inspection
• Tow and drop camera system
• ROV Systems
• Subsea Crawler systems





Real-Time Adjustment of the Camera

An underwater video camera with manual adjustment directly from the surface in real time. The adjustment is performed via an integration module in the video case/video controller box where you can adjust the camera’s settings via a remote control, e.g. white balance, closing speed, colors, contrast, brightness, light, backlight, backscatter and LCD/CRT screen setting. With this solution you can trim and adjust the camera according to the actual visual and light conditions in the water.





Subsea Cam POM 30HD-m

TECHNICAL SPECIFICATIONS:

• Camera in Pom housing and Stainless Steel AISI 316 front. Window Borosilicate glass.
• Diameter 30 mm. Length 128 mm, Weight 125 gram.
• 1/3” 2 Mega pixel Sony CMOS.
• Low Light Sensitivity 0,1 lux at F 1,2. Fisheye Lens 120º.
• AHD video standards 1920H x 1080V PAL 25fps.
• The video signal can run in standard 75 Ω coax cable.
• Shutter Speed 1/50~1/100,000 sek.
• Automatic White Balance 2100~8200 Kelvin.
• Power input 12VDC (24VDC on request). Standard Connector 4P Subsea Micro MCBH4M (alternatives available).
• Possibility of Realtime camera adjustment, with LH Cam Remote device.
• Depth rating 100 meter.







Subsea Cam POM 30HD-c

TECHNICAL SPECIFICATIONS:

• Camera in Pom housing and Stainless Steel AISI 316 front. Window Borosilicate glass.
• Diameter 30 mm. Length 140 mm, Weight 210 gram.
• 1/3” 2 Mega pixel Sony CMOS.
• Low Light Sensitivity 0,1 lux at F 1,2. Fisheye Lens 120º.
• AHD video standards 1920H x 1080V PAL 25fps.
• The video signal can run in standard 75 Ω coax cable.
• Shutter Speed 1/50~1/100,000 sek.
• Automatic White Balance 2100~8200 Kelvin.
• Power input 12VDC (24VDC on request). Standard Connector 4P Subsea Micro MCIL4M (alternatives available).
• Possibility of Realtime camera adjustment, with LH Cam Remote device.
• Depth rating 100 meter.







Subsea Cam 316 30HD-m

TECHNICAL SPECIFICATIONS:

• Camera in Stainless Steel AISI 316 housing. Window Borosilicate glass.
• Diameter 30 mm. Length 140 mm, Weight 376 gram.
• 1/3” 2 Mega pixel Sony CMOS.
• Low Light Sensitivity 0,1 lux at F 1,2. Fisheye Lens 120º.
• AHD video standards 1920H x 1080V PAL 25fps.
• The video signal can run in standard 75 Ω coax cable.
• Shutter Speed 1/50~1/100,000 sek.
• Automatic White Balance 2100~8200 Kelvin.
• Power input 12VDC (24VDC on request). Standard Connector 4P Subsea Micro MCBH4M (alternatives available).
• Possibility of Realtime camera adjustment, with LH Cam Remote device.
• Depth rating 500 meter.







Subsea Cam 316 30HD-r

TECHNICAL SPECIFICATIONS:

• Camera in Stainless Steel AISI 316 housing. Window Borosilicate glass.
• Diameter 30 mm. Length 140 mm, Weight 432 gram.
• 1/3” 2 Mega pixel Sony CMOS.
• Low Light Sensitivity 0,1 lux at F 1,2. Fisheye Lens 120º.
• AHD video standards 1920H x 1080V PAL 25fps.
• The video signal can run in standard 75 Ω coax cable.
• Shutter Speed 1/50~1/100,000 sek.
• Automatic White Balance 2100~8200 Kelvin.
• Power input 12VDC (24VDC on request). Standard Connector 4P Subsea Micro MCBHRA4M (alternatives available).
• Possibility of Realtime camera adjustment, with LH Cam Remote device.
• Depth rating 500 meter.
