Subsea Cam 30 series Commercial Diver Underwater Video Camera – Analog Subsea System

The Subsea Cam 30 is a professional-grade underwater video camera built for commercial divers, offshore operations, and underwater inspections in harsh environments. Designed by LH Camera with decades of expertise in subsea imaging, this analog camera delivers reliable performance and visual clarity in near-total darkness (0.1 lux).

Equipped with a high-quality Wide-i color camera module and ultra-wide 92° angle lens, the Subsea Cam 30 captures wide-field footage – perfect for inspections, repairs, and documentation work in dark, cold, and turbid water.

Key Features:

• Analog subsea video camera with wide-angle lens
• Low-light sensitivity: 0.1 lux

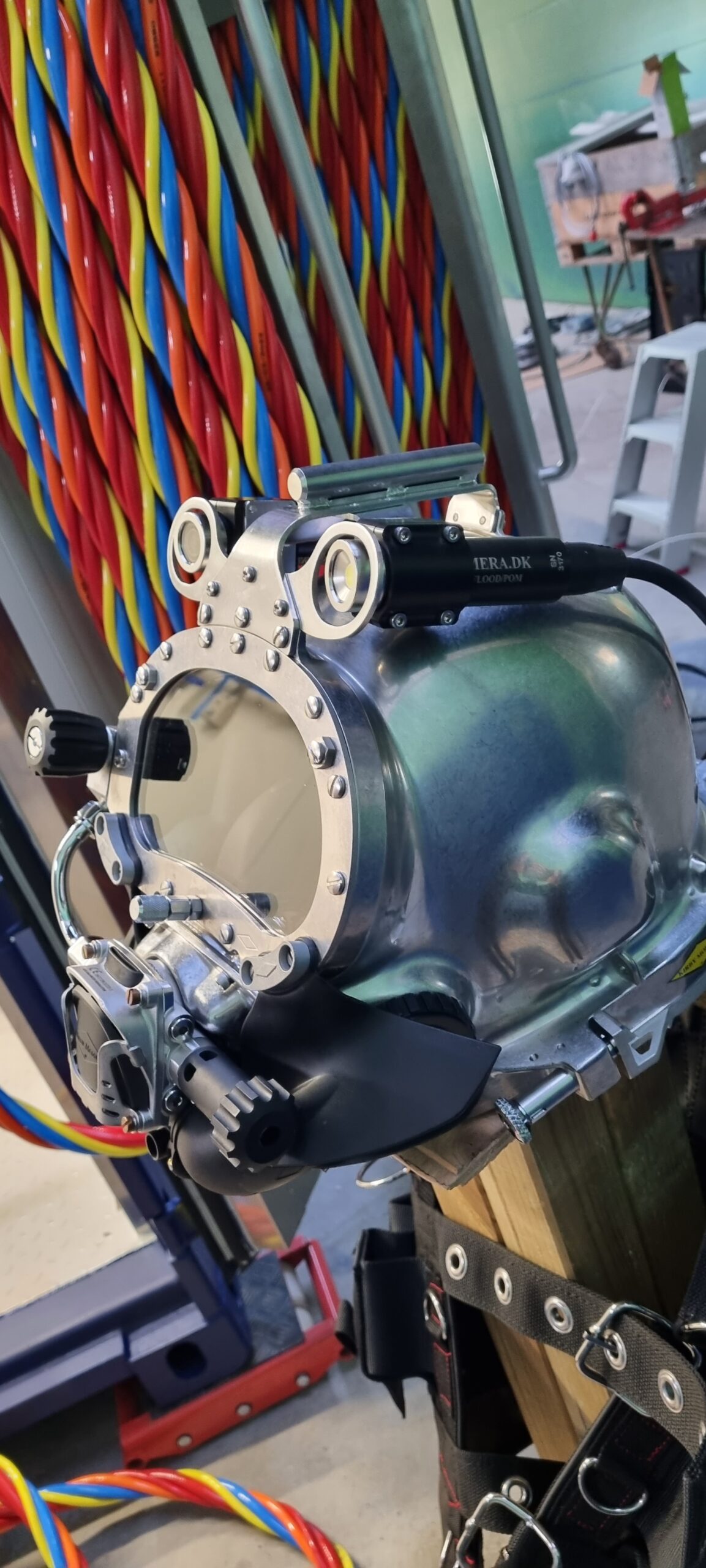

• Designed for helmet or handheld use
• Rugged construction for offshore and underwater industry standards
• Ideal for commercial diving, ROV support, and marine inspection



Connector Options (standard):

• m = MCBH4MSS
• r = MCBHRA4MSS
• c = MCIL4M

Alternative subsea connectors available upon request.

Preferred by professionals, the Subsea Cam 30 is trusted worldwide by commercial divers and inspection teams for delivering stable, high-quality video even in the most demanding underwater conditions.

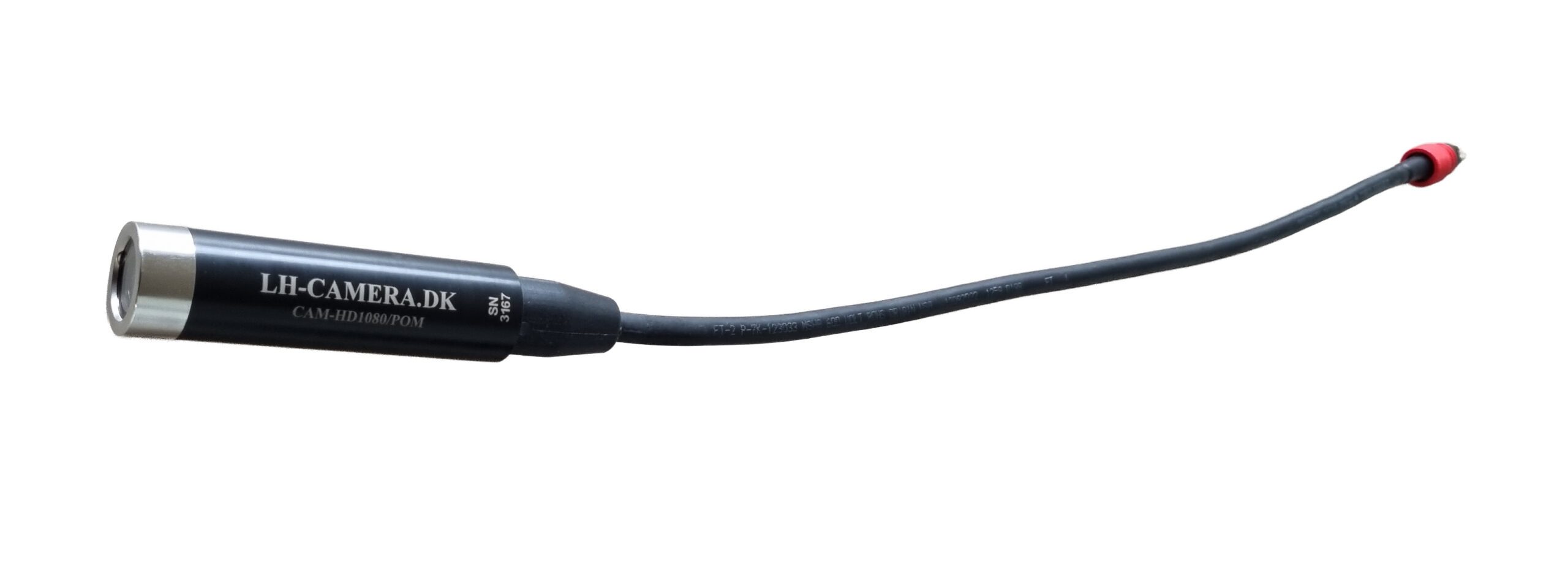

       Subsea Cam POM 30-c                                                                                Subsea Cam POM 30-m                                                                  Subsea Cam 316 30-r





Both types of commercial diving cameras have been pressure tested to 50 bar. The camera itself is filled with nitrogen to avoid condensation in the optics. On demand, LH Camera can custom-make a commercial diving camera with a powerful wide angle of 120 degrees and a pressure capacity down to 200 bar. Please contact us and tell us about your requirements and needs; then we will find a solution that fits you.



Real-Time Adjustment of the Camera An underwater video camera with manual adjustment directly from the surface in real time. The adjustment is performed via an integration module in the video case/video controller box where you can adjust the camera’s settings via a remote control, e.g. white balance, closing speed, colors, contrast, brightness, light, backlight, backscatter and LCD/CRT screen setting. With this solution you can trim and adjust the camera according to the actual visual and light conditions in the water.

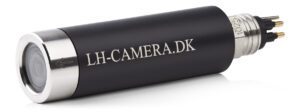

Lightweight Subsea Diver Camera Professional lightweight subsea video camera, colour, with fisheye lens and Subsea Micro connector with 4 contacts. Weighs only 125 g. Ideal for mounting on a professional full-face diving mask.



Subsea Cam POM 30-c

TECHNICAL SPECIFICATIONS:

• Camera in Pom housing and Stainless Steel AISI 316 front. Window Borosilicate glass.
• Diameter 30 mm.Length 128 mm, Weight 175 gram.
• 1/3” Sony EX-View Super HAD CCD.
• Low Light Sensitivity 0,1 lux at F 2,0. Fisheye Lens 120º.
• 800 TV Lines Resolutions. Pixels 976 (H) x 582 (V) PAL.
• Automatic White Balance 2100~8200 Kelvin.Shutter Speed 1/50~1/100,000 sek.
• Power input 12VDC (24VDC on request). Standard Connector 4P Subsea Micro MCIL4M (alternatives available).
• Possibility of Realtime camera adjustment, with LH Cam Remote device.
• Standard Wiring 1 Video signal 2 Power GND/Screen 3 Power + 4 NC
• Depth rating 100 meter.





Subsea Cam POM 30-m

TECHNICAL SPECIFICATIONS:

• Camera in Pom housing and Stainless Steel AISI 316 front. Window Borosilicate glass.
• Diameter 30 mm.Length 128 mm, Weight 125 gram.
• 1/3” Sony EX-View Super HAD CCD.
• Low Light Sensitivity 0,1 lux at F 2,0. Fisheye Lens 120º.
• 800 TV Lines Resolutions. Pixels 976 (H) x 582 (V) PAL.
• Automatic White Balance 2100~8200 Kelvin.Shutter Speed 1/50~1/100,000 sek.
• Power input 12VDC (24VDC on request). Standard Connector 4P Subsea Micro MCBH4M (alternatives available).
• Possibility of Realtime camera adjustment, with LH Cam Remote device.
• Standard Wiring 1 Video signal 2 Power GND/Screen 3 Power + 4 NC
• Depth rating 100 meter.



Subsea Cam 316 30-m

TECHNICAL SPECIFICATIONS:

• Camera in Pom housing and Stainless Steel AISI 316. Window Borosilicate glass.
• Diameter 30 mm.Length 128 mm, Weight 382 gram.
• 1/3” Sony EX-View Super HAD CCD.
• Low Light Sensitivity 0,1 lux at F 2,0. Fisheye Lens 120º.
• 800 TV Lines Resolutions. Pixels 976 (H) x 582 (V) PAL.
• Automatic White Balance 2100~8200 Kelvin.Shutter Speed 1/50~1/100,000 sek.
• Power input 12VDC (24VDC on request). Standard Connector 4P Subsea Micro MCBH4M (alternatives available).
• Possibility of Realtime camera adjustment, with LH Cam Remote device.
• Standard Wiring 1 Video signal 2 Power GND/Screen 3 Power + 4 NC
• Depth rating 500 meter



Subsea Cam 316 30-r

TECHNICAL SPECIFICATIONS:

• Camera in Pom housing and Stainless Steel AISI 316. Window Borosilicate glass.
• Diameter 30 mm.Length 128 mm, Weight 425 gram.
• 1/3” Sony EX-View Super HAD CCD.
• Low Light Sensitivity 0,1 lux at F 2,0. Fisheye Lens 120º.
• 800 TV Lines Resolutions. Pixels 976 (H) x 582 (V) PAL.
• Automatic White Balance 2100~8200 Kelvin.Shutter Speed 1/50~1/100,000 sek.
• Power input 12VDC (24VDC on request). Standard Connector 4P Subsea Micro MCBHRA4M (alternatives available).
• Possibility of Realtime camera adjustment, with LH Cam Remote device.
• Standard Wiring 1 Video signal 2 Power GND/Screen 3 Power + 4 NC
• Depth rating 500 meter.
