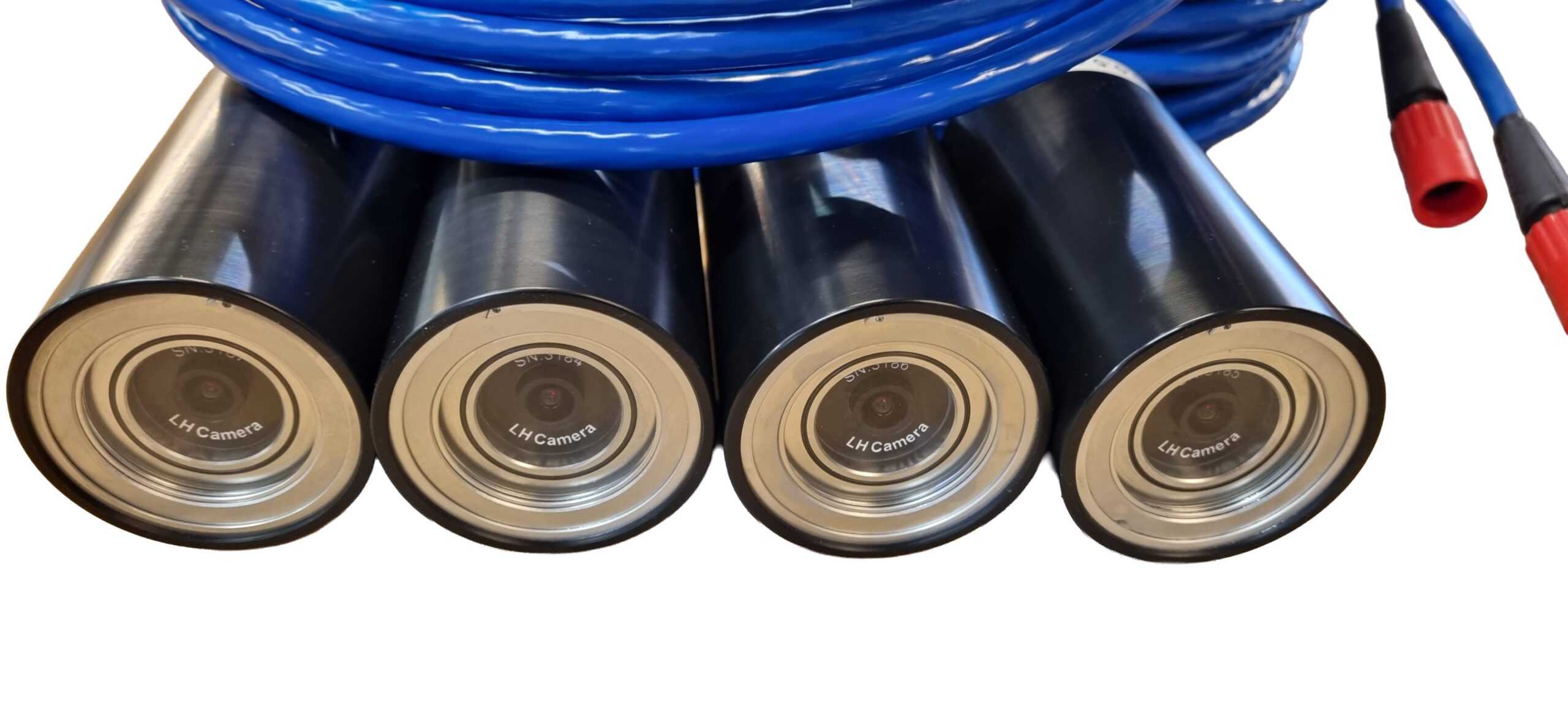

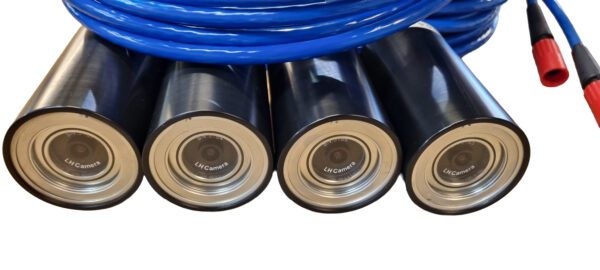

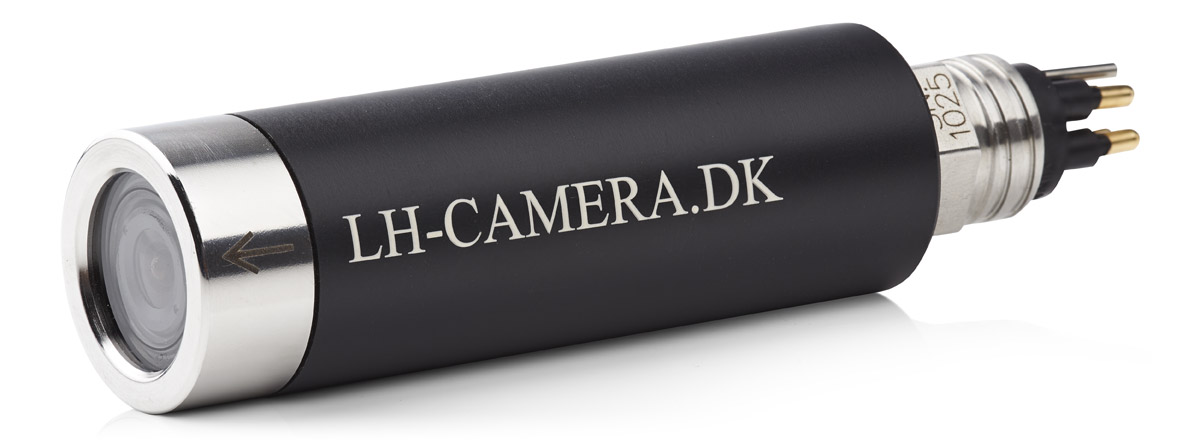

HD 1080p Low-Light Ethernet Subsea Camera – Fixed Focus
This high-definition underwater cameras is designed for low-light environments and real-time video transmission via Ethernet. Equipped with a fixed-focus lens, it delivers sharp and stable HD footage, even in challenging subsea conditions.
The cameras connects to a surface-based control unit using a robust cable, ensuring reliable performance during extended underwater operations.
Ideal for scientific research, offshore inspections, underwater construction, and military applications, this compact camera is built to perform in demanding marine environments.
Subsea Cam POM 100IP Subsea Cam POM 70IP Subsea Cam POM 80IP
Subsea IP Camera. Applications
- Aquaculture industry
- Land-based fish farms
- ROV systems
- Offshore underwater inspection
- General underwater Subsea inspection
- The wind power industry
- Dredging vessel
- Subsea Crawler systems
- Underwater observatory systems

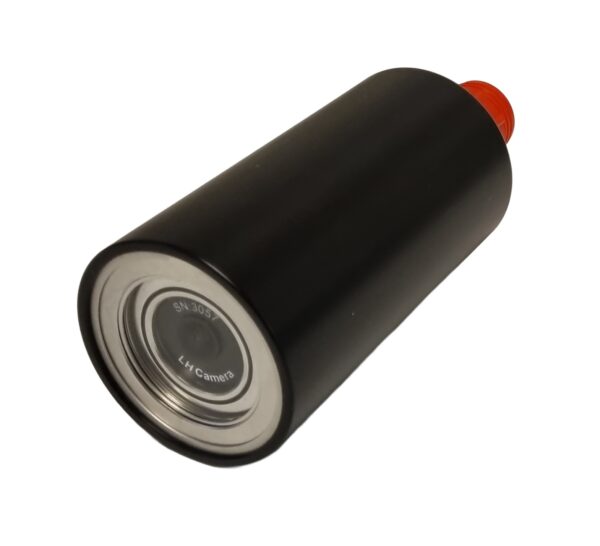

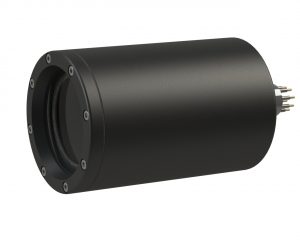

Subsea Cam POM 100IP
TECHNICAL SPECIFICATIONS:
- Camera housing in POM. Window acrylic. Depth rating 50 meters.
- Length 153 ~ 199 mm. Diameter 100 mm. Weight approx 925g.
- Lens 2.8mm Fixed Focus length, field of view H 102°V 71°.
- Max Resolution (2592×1944 20 fps)-(1920×1080 25fps). Low Latency Approx. 120 ms.
- Video Compression H.264-H265+
- Standard Streaming protocol RTSP-RTP-UDP
- Interoperability ONVIF-CGI.-Milsetone
- Web Viewer IE, Chrome, Firefox, Safari.
- Ethernet (10/100Base-T).
- Mounted with Subsea DBH13M/MCBH8M or DBH8M for PoE. Power Supply 12VDC/PoE+(802.3at) 24 VDC (on request)
- Power Consumption approx 7W. Other connector on request.

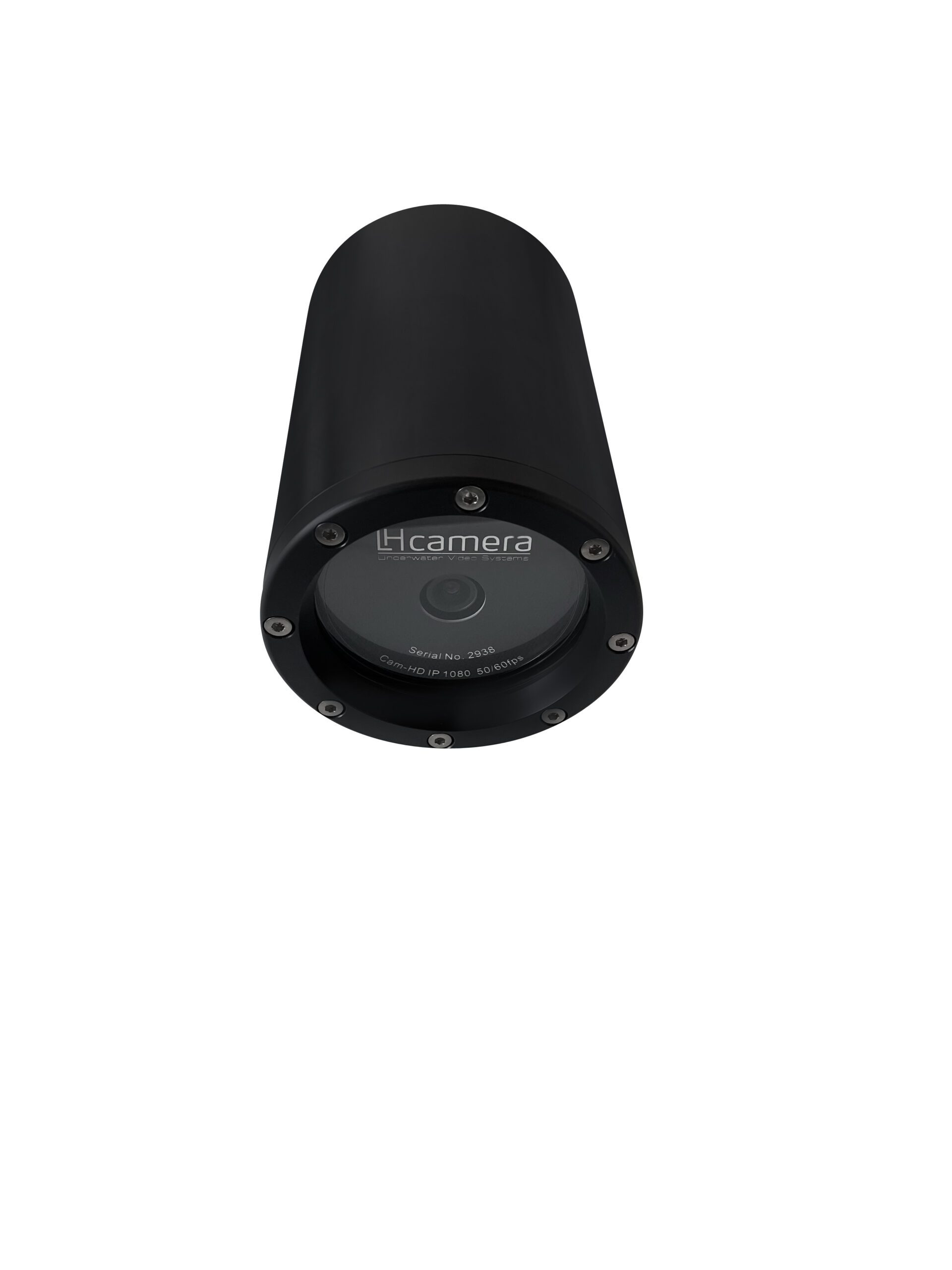

Subsea Cam POM/316 70IP
TECHNICAL SPECIFICATIONS:
- Camera housing in AISI 316 or POM with super duplex fronts. Window Sapphire. Depth rating from 100 /2000 meters.
- Length 135 mm. Diameter 70 mm. Weight from 585/1880 g in air. Weight in water 60/1362 g.
- Sensor 1/2.7″ progressive scan CMOS. Minimum Illumination 0.007Lux/F1.6.
- Max Resolution (2592×1944 20fps)-(1920×1080 25fps). Low Latency Approx. 120 ms.
- Video Compression H.264-H265+
- Standard Streaming protocol RTSP-RTP-UDP
- Interoperability ONVIF-CGI.-Milsetone
- Web Viewer IE, Chrome, Firefox, Safari.
- Ethernet (10/100Base-T).
- Mounted with Subsea DBH13M/MCBH8M or DBH8M for PoE. Power Supply 12VDC/PoE+(802.3at) 24 VDC (on request)
- Power Consumption approx 7W. Other connector on request
* This type is also available with a 50/60fps sensor on request

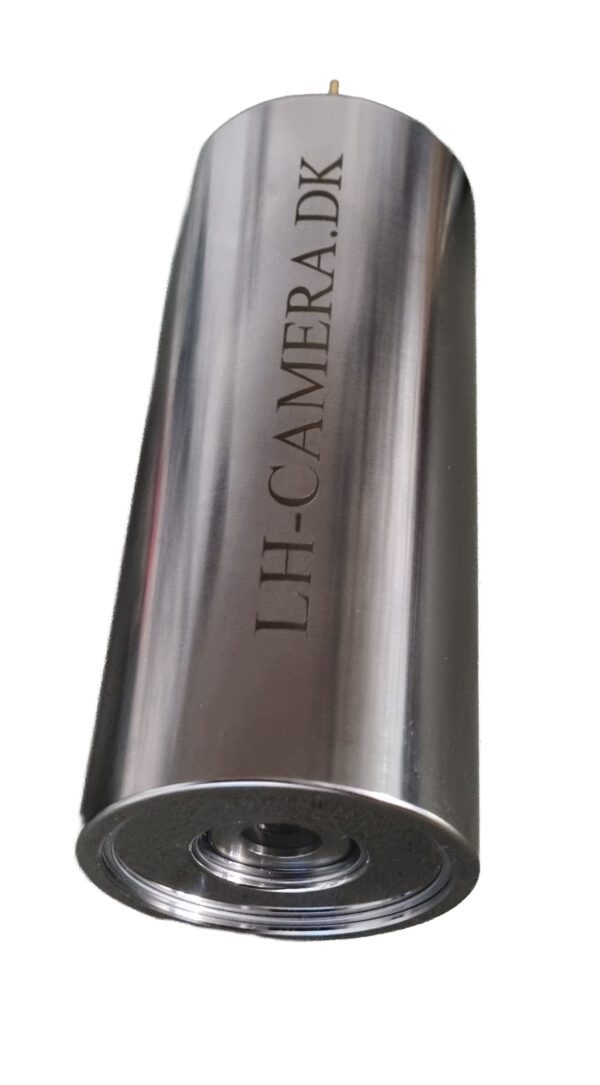

* Subsea Cam 70IPSS is in AISI316 housing

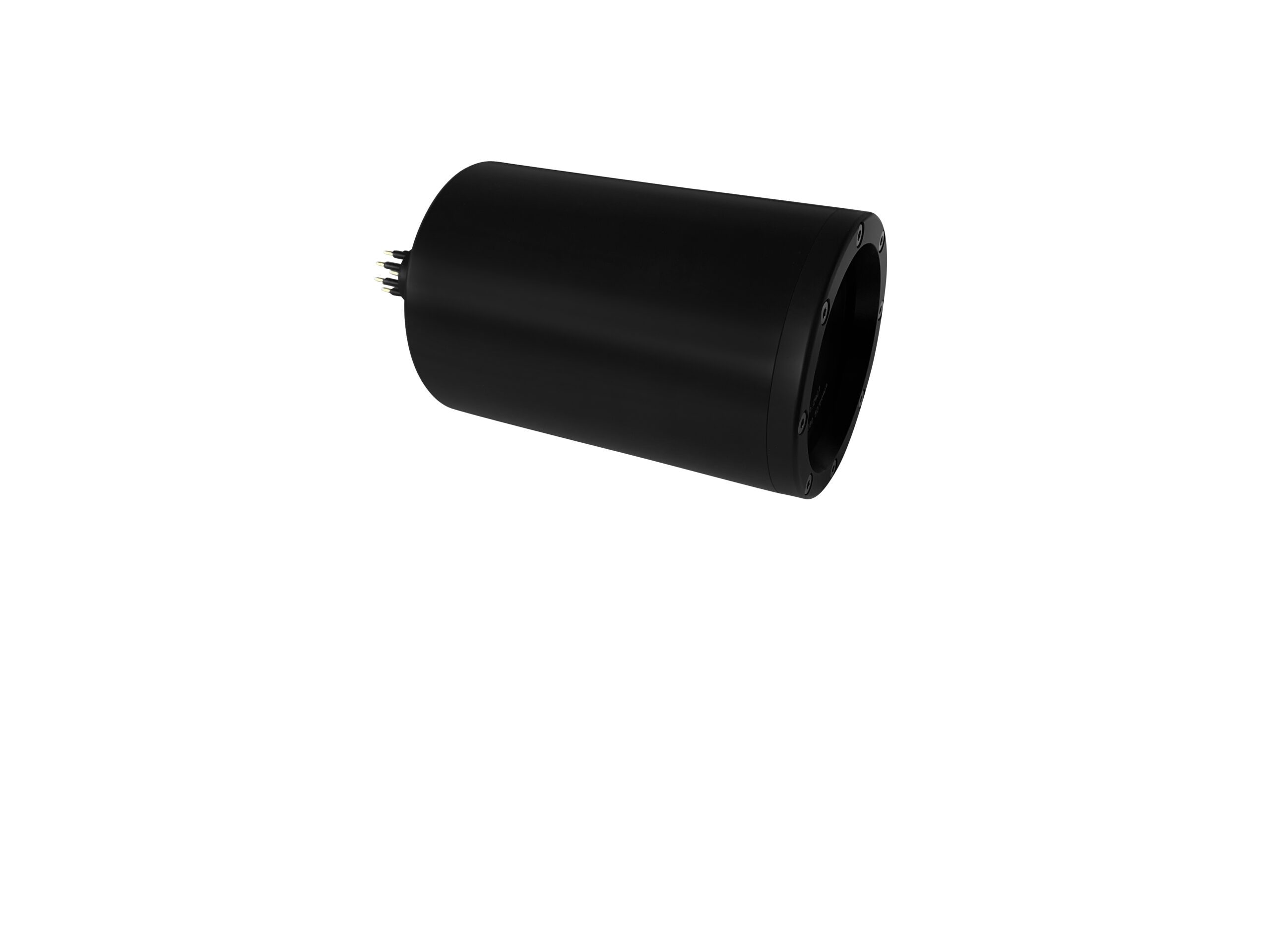

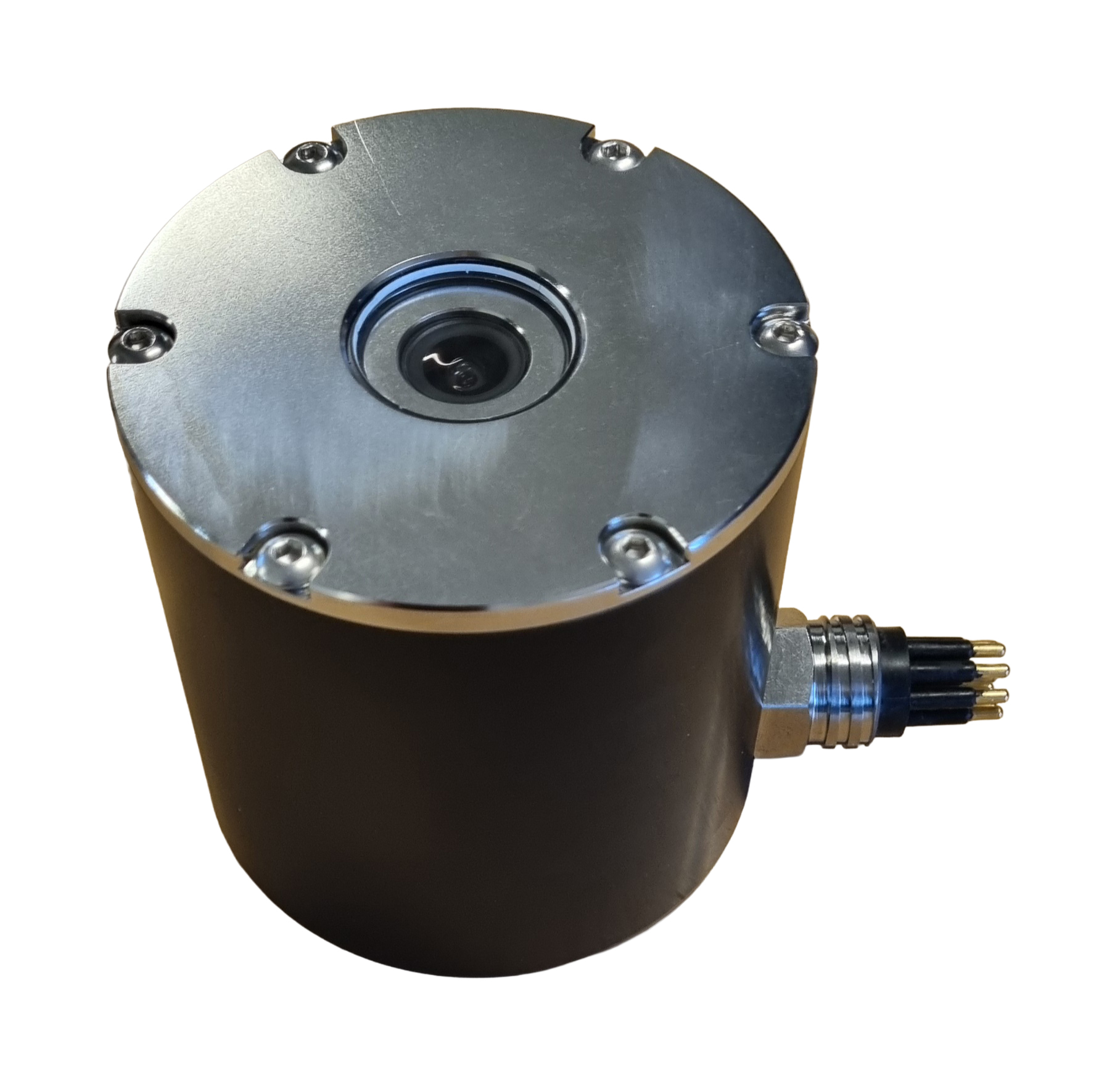

Subsea Cam POM 80IP
TECHNICAL SPECIFICATIONS:
- Camera housing in POM. Window acrylic. Depth rating 100 meters.
- Length 80mm. Diameter 80 mm. Weight in air 750g in seawater 250g.
- Lens 2.8mm Fixed Focus length, field of view H 102°V 71°.
- Max Resolution (2592×1944 20 fps)-(1920×1080 25fps). Low Latency Approx. 120 ms.
- Video Compression H.264-H265+
- Standard Streaming protocol RTSP-RTP-UDP
- Interoperability ONVIF-CGI.-Milsetone
- Web Viewer IE, Chrome, Firefox, Safari.
- Ethernet (10/100Base-T).
- Mounted with Subsea DBH13M/MCBH8M or DBH8M for PoE. Power Supply 12VDC/PoE+(802.3at) 24 VDC (on request)
- Power Consumption approx 7W. Other connector on request.
