Subsea Video, Light & Recorder Panels for Fixed Installation

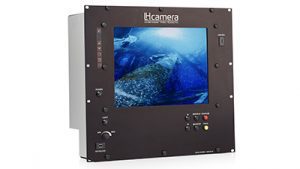

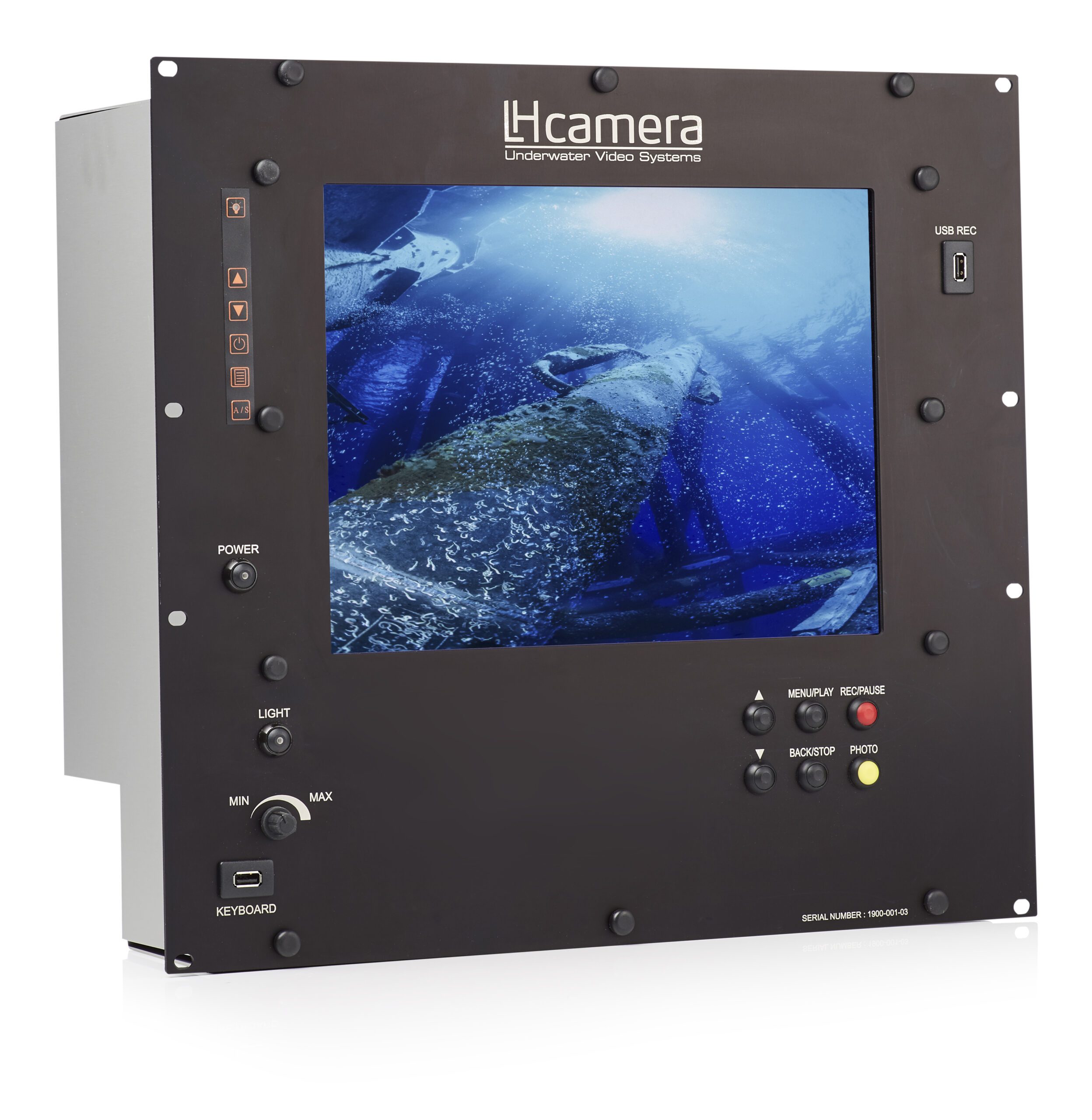

Professional Subsea Control Unit for Diving Operations and Underwater Video Monitoring

This Subsea Control Unit is expertly engineered for integration into a 15″ light-sensitive monitor, offering seamless connectivity with a USB video recorder, stepless video lamp dimming (0–100%), and more. Designed for installation in a standard 19″ rack system, it is ideal for permanent indoor use in diving containers, surface control rooms, and emergency response vehicles.

Crafted from durable anodised aluminium, the unit measures H 440 mm x W 483 mm x D 207 mm. The rear panel features a multi-terminal connector port for easy connection to underwater cameras, video lights, and audio inputs for diver communication systems.

Key Features:

• Integrated USB Video Recorder
  Record high-quality video and audio directly to internal or external USB flash drives. Capture JPEG snapshots with a single press during recording. All images are saved in a dedicated media library. Quickly replay footage directly from the unit.

• Stepless Video Lamp Control
  Adjust lighting intensity smoothly from 0% to 100% with the control panel for precise underwater visibility.

• Expandable Modular Design
  Upgrade the system with optional modules, including multi-camera screen split (up to 4 cameras), video depth indicators, and more for advanced subsea inspection capabilities.

• Timestamp and Free Text Overlay
  Option to display date/time and custom text on recorded video, enhancing documentation and reporting accuracy.

Built for the Demands of Professional Diving

This user-friendly underwater video control system is built for professional divers, providing reliable and efficient control during subsea inspections. With all essential functions integrated into one unit, it simplifies operations while delivering high-quality underwater video documentation.

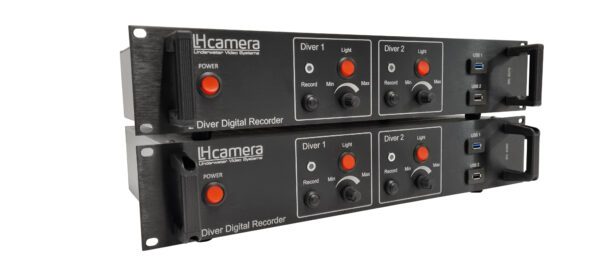

Subsea Video & Light Control Rack Unit – Dual Diver Recorder System (2U Rack)

Front side

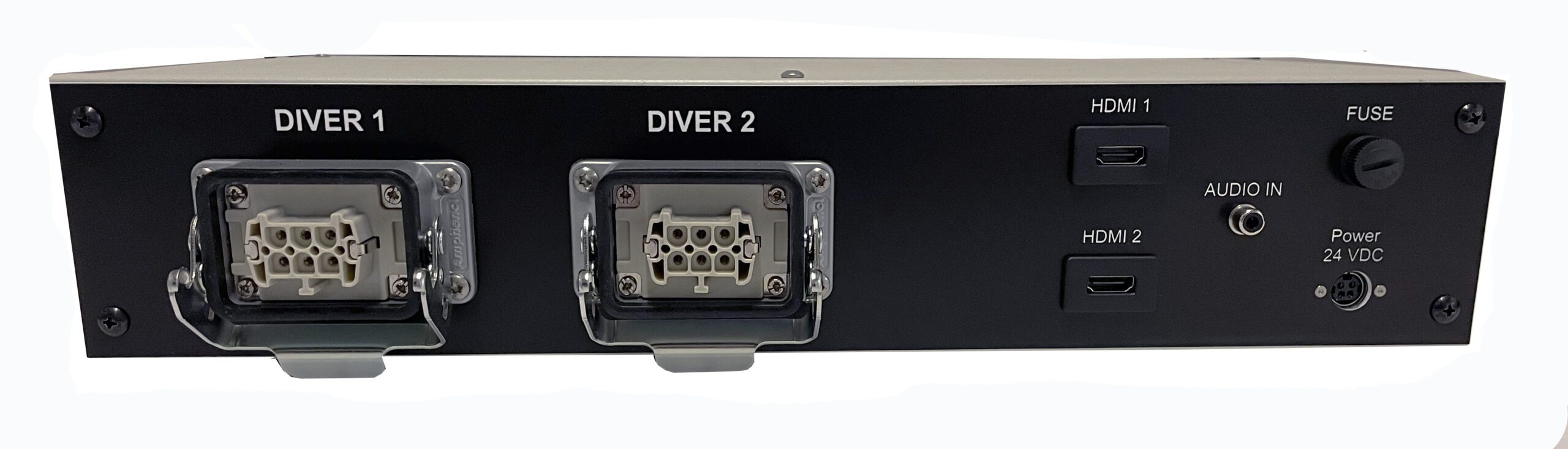

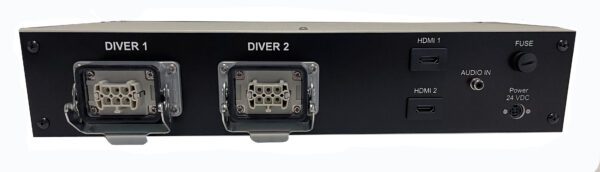

Back side

Boost your underwater operations with this professional-grade Subsea Rack Panel designed for dual diver video, light, and audio control. Built for integration into a standard 19″ 2U rack system, this compact unit offers precise control and full HD recording for subsea inspections, offshore diving, marine research, and underwater maintenance tasks.

Key Features:

• Dual Diver Control Panel
  Control video recording, light dimming (0–100% stepless) and audio input from diver communication systems for Diver 1 and Diver 2.

• Full HD Video & Audio Recording
  Integrated video recorder captures in 1080p HD or SD 720×576 formats, with synchronized audio from diver phone.
  All recordings are stored on the internal hard drive for secure archiving.

• USB Export & Playback
  Easily export recordings via USB 1 & USB 2 ports to a flash drive. View footage directly on an external monitor using dual HDMI outputs.

• Timestamp & Overlay Options
  Optional date/time overlay and custom text display for improved documentation. System can also integrate depth sensor data for real-time on-screen readouts.

• Robust Connectivity

• 2x Umbilical ports (video/light)
• 1x RCA audio input
• 2x HDMI out
• LAN expansion for live streaming over the internet
• Compatible with 230VAC / 24VDC power supply (included)

Technical Specifications:

• Dimensions: H 88 mm × W 483 mm × D 250 mm

• Rack Size: 19″ / 2U

• Material: Durable anodised aluminum front panel

• User Interface: Front-mounted controls for record, light dim, and power

• Offshore diving operations

• Subsea inspections

• Wind farm maintenance

• Underwater research missions

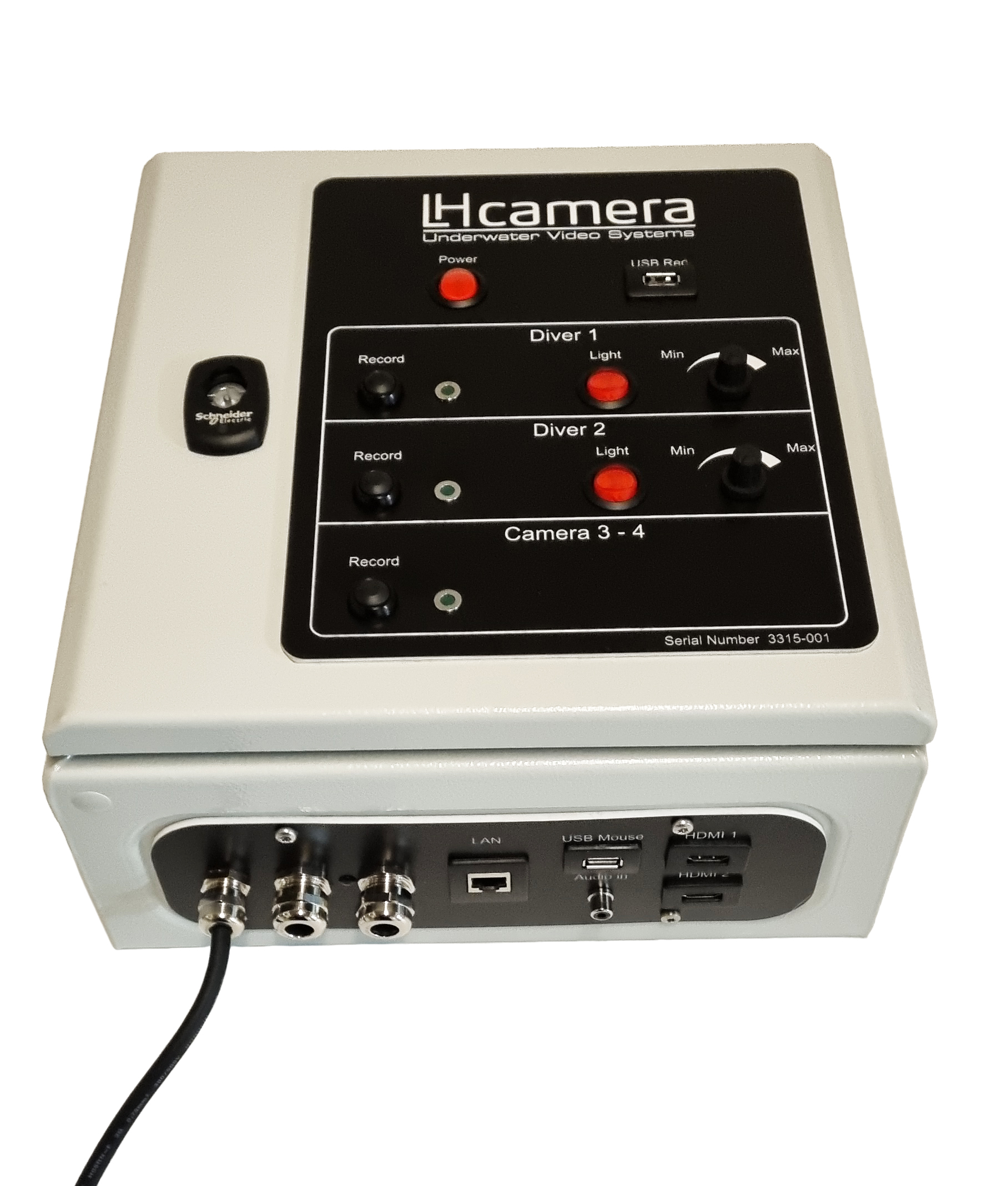

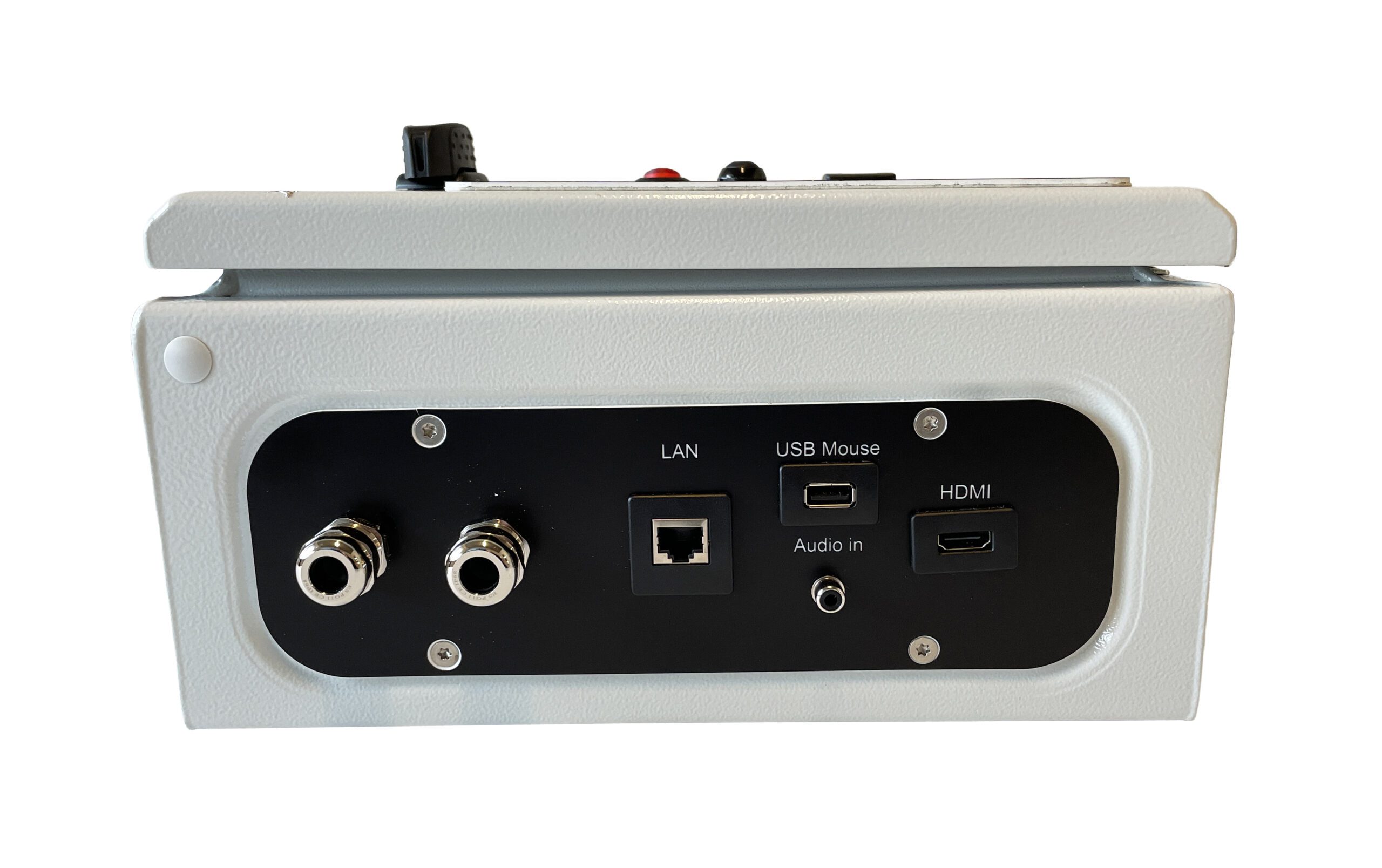

Wall-Mounted Subsea Video & Light Control Unit – Dual Diver Hybrid Recorder System

Upgrade your diving operations with this compact and robust wall-mounted video control unit, purpose-built for offshore diving, mobile dive vans, and subsea inspection containers. This system is a hybrid video recorder, capable of capturing footage from both Full HD 1080p digital cameras and traditional analog video cameras, offering flexibility for a wide range of diving equipment setups.

Key Features:

• Wall-Mounted Enclosure
  Durable cabinet measuring 300 mm (L) × 300 mm (W) × 150 mm (H) – ideal for vehicle installation, offshore dive control rooms, or emergency response units.

• Hybrid Video Recorder
  Supports both Full HD (1080p) and analog video inputs, making it compatible with modern and legacy subsea camera systems.

• Dual Diver Control
  Independent control for Diver 1 and Diver 2 with:

• Stepless light dimming (0–100%) for diver lamps

• Video/audio recording buttons with status indicators

• Multi-Camera Recording & Playback
  Record from up to 4 underwater cameras simultaneously. Built-in storage saves video in MP4 format on the internal hard drive, with instant playback available via external monitor.

• USB Export
  Easy file transfer to external USB flash drives via front USB port.

• Audio Integration
  Synchronized audio input from external diver radio – ensuring accurate audio logging alongside dive video.

• Live Internet Streaming
  Equipped with LAN input for real-time live streaming to remote observers or clients on PCs, tablets, or mobile devices.

• 2x HDMI Outputs
  Dual HDMI connections for real-time external display during operations.

Ideal for:

• Offshore and subsea inspections

• Diving support vehicles and mobile containers

• Marine research expeditions
