HD-Trawl Eye Camera

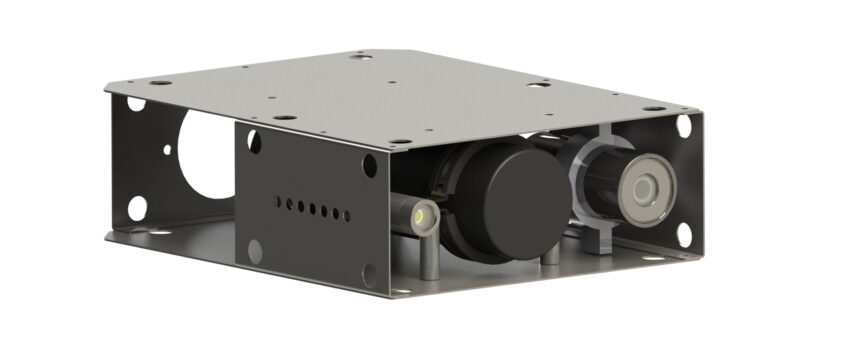

Our HD-Trawl Eye Camera is available as standalone devices in two versions. Our Ultra lightweight version, made in Pom and Aisi 316 materials, can withstand pressures down to 500 meters depth. The Deep Sea edition is made in AISI 316 and can withstand pressure down to 1500 meters. The systems are available as complete units with light battery pack and camera for mounting in fishing gear.

HD-Trawl Eye Camera
HD-Trawl Eye Camera

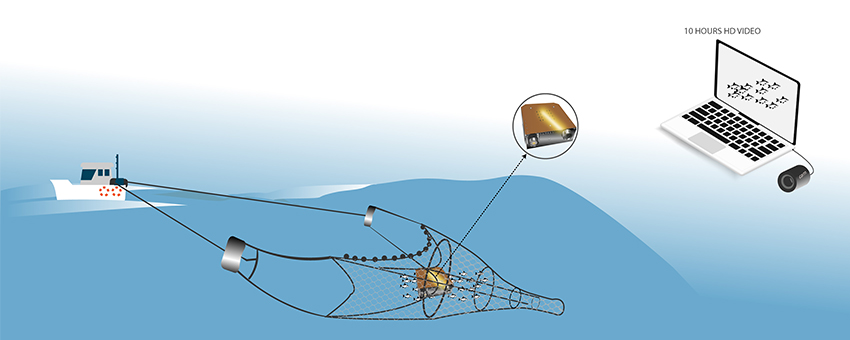

LH Camera has developed a lightweight HD-Trawl Camera camera that can record in full HD quality, 1080×1920. The camera is cylindrical, 60 mm in diameter and suitable for being installed on a fishing gear, on a Towfish or as a standalone camera in connection with ocean research. It has an integrated recorder with storage capacity that can record video in full HD for up to 10 hours..

The camera is operated with one Plug and Play connector. When it is connected to the unit, it starts recording continues until the connector is disconnected, which stops the recording. The camera is incredibly easy to operate and very user-friendly.

Video files are easily transferred from the camera to a PC using the accompanying USB/charging adapter plug.

The camera comes as a standalone camera or with an analog video out output so you can see live recordings from the camera on an existing analog installation using a 75 Ώ coaxial cable connection to the surface and at the same time store full HD video in the camera’s internal memory.

Technical specifications

  • HD-Trawl Camera i POM made of POM and stainless steel AISI 316.
  • Camera dimensions: Length 176 mm, diameter 60 mm.
  • Weight 600 grams. In water 200 grams.
  • Can record and store video in full HD 1080p H.264 with 25/30 fps.
  • Depth rating 500 meter.
  • Fitted with Subsea connector.
  • Option of analog output via a cable connection to the surface.
  • 120° wide angle optics.
  • Plug and Play data transfer of video files to a PC from the camera’s memory.
  • The camera battery has up to 10 hours of run time and is rechargeable.

Download Data sheet


Titel Filstørrelse Download
Data sheet HD-Trawl Eye Camera 179 KB
Deep Sea Trawl Camera
Deep Sea Trawl Camera

The Deep Sea trawl camera has been developed to deeper water, where the stainless steel construction makes the camera extremely robust and therefore suitable for use in larger fishing gear on Towfish or as a standalone camera for deep-sea research.
The camera can, as in the pom edition, make full HD, 1080 × 1920, and a built-in recorder with storage capacity for 10 hours in full HD

The camera can, as in the pom edition, make full HD, 1080 × 1920, and a built-in recorder with storage capacity for 10 hours in full HD

The Camera is cylindrical, 60 mm and operated with a single plug and play connector, which is connected to the unit, which thus starts recording it continues record until the plug is removed again. The camera is incredibly easy to operate and very user-friendly. Transferring video files from the camera to a PC takes place easily and effortlessly with the included USB / charging adapter connector.

Technical specifications

  • Deep Sea HD-Trawlkamera i rustfrit stål AISI 316.
  • Camera dimensions: Length 176 mm, diameter 60 mm.
  • Weight in air 1700 gram. In water 1300 gram.
  • Can record and store video in full HD 1080p H.264 with 25/30 fps.
  • Depth rating 1500 meter.
  • Fitted with Subsea connector.
  • 120° wide angle optics.
  • Plug and Play data transfer of video files to a PC from the camera’s memory.
  • The camera battery has up to 10 hours of run time and is rechargeable.

Download Data Sheet


Titel Filstørrelse Download
Data sheet Deep Sea HD-Trawel Eye Camera 160 KB

Video clip of LH Trawl Eye camera mounted in a Trawl aboard fishing vessel L227 Grethe Hviid
