Portable video case system for Commercial Diving,Ocean Research ect.
before

Portable Analog and HD-video system

LH Camera provides different customized video case solutions for a wide variety of inspection purposes using underwater video, e.g.:

  • Commercial Diving
  • Ocean Research
  • Offshore
  • The Fishing Industry
  • Subsea Industry

Portable 8,4
Portable 8,4" Analog Video case

8,4” Analog Video-Light-Rec Travel Case

Complete control of camera/video light/video rec from the surface. integrated 8,4” sunlight
viewable monitor in the lid of the case. The system has an integrated stepless dimmer switch for adjusting the video LED lamp.

Our video cases have an integral recorder that stores video footage directly on a USB flash drive. You can view your footage directly on the case monitor and on a PC at your leisure. You can use footage to document performance of your task. You deliver a file directly to your customer

A real travel video system suitable for recording larger or smaller surveys, for example for marine research or light inspection tasks, where the weight and size of the gear are essential.

Technical specifications:

8,4” sunlight readable 600 nits (cd/m2) 4:3 monitor, dimmer module, USB video recorder with snapshot function, heavy-duty marine connectors for connection to Umbilical, built in lithium ion battery pack– all built into an original Peli protective case.

Extra modules that can be built into the video cases

  • Text overlay that allows you to superimpose depth, temperature and GPS coordinates onto video images.
  • Camera Adjustment in Real Time control the camera settings via remote control. E.g. white balance, closing speed, colors, contrast, brightness.With this solution you can trim and adjust the camera according to the actual visual and light conditions in the water.
  • 230/12VDC power supply module.
15
15" Video case Video/Light/Rec

15” Analog Video-Light-Rec Case Model Pro

Complete control of camera / video light /video rec from the surface. integrated 15” sunlight
viewable monitor in the lid of the case. The system has an integrated stepless dimmer switch for adjusting the video LED lamp. Audio input to record sound from diver’s telephone

Our video cases have an integral recorder that stores video footage directly on a USB flash drive. You can view your footage directly on the case monitor and on a PC at your leisure. You can use footage to document performance of your task. You deliver a file directly to your customer



Technical specifications:

15” sunlight readable 1000 nits (cd/m2) 4:3 monitor, dimmer module, USB video recorder with snapshot function, heavy-duty marine connectors for connection to Umbilical, Audio input to record sound from diver’s telephone, 230/24VDC Power supply– all built into an original Peli protective case.



Extra modules that can be built into the video cases

  • Text overlay that allows you to superimpose depth, temperature and GPS coordinates onto video images.
  • Camera Adjustment in Real Time control the camera settings via remote control. E.g. white balance, closing speed, colors, contrast, brightness.With this solution you can trim and adjust the camera according to the actual visual and light conditions in the water.
  • Built in lithium ion battery pack module.
  • Multiple Camera input.Connect up to 4 underwater video cameras to the video case where you have the option of different screen setups by using the remote control from the case’s panel. You can choose 4 split images, 2 split images, full screen image or picture-in-picture display on the monitor.
  • Black Box Data Logger.LH Camera has developed a data logger that can be integrated into video cases, which can collect data from a number of sensors e.g. depth-temperature-oxygen or salinity. The logger can also register data from the video overlay with GPS position and date/time. Via the push button on the case panel (or via a remote control) you can insert your own event markers which will be registered in the logger. All data is downloaded from the logger with a USB interface and associated software program.



Download Data sheet


Titel Filstørrelse Download
Data sheet 15" Video case model pro 673 KB
15
15" Video case Video/Light/Rec/Com

15” Analog Video-Light-Rec-Com Case Model Pro XL

Complete control of camera /video light/video rec/Diver communication. Integrated 15” sunlight
viewable monitor in the lid of the case. The system has an integrated stepless dimmer switch for adjusting the video LED lamp. Build in Diver telephone for 1 x diver and 1 x tender. (type OTS Combox).

Videokufferterne har indbygget USB-optager, der gemmer video og lyd direkte på et USB-flashdrev, der både kan afspilles direkte på kuffertens monitor og efterfølgende på en almindelig PC. Det er nyttigt som dokumentation af den netop udførte opgave, og filen kan udleveres direkte til kunden.



Tekniske specifikationer

15” sollyslæsbar 1000 nits (cd/m2) 4:3 monitor, lysdimmer modul, USB-videooptager med mulighed for snapshot, Indbygget dykkertelefon for 1xdykker og en tender, heavy duty marinestik for tilslutning af Umbilical, 230/24VDC strømforsyning stik – alt sammen indbygget i en original Peli-kuffert.



Tilkøb af indbygnings moduler

  • GPS-Dybde-Temp videooverlejring og tekstmodul, med visning af dybde -Temperatur og GPS position på videobilledet
  • Real Time kamera justering hvor man Bl.a. kan justere hvidbalance, lukkehastighed, farver, kontrast, skarphed, lys mm. Med denne løsning kan man trimme og justere kameraet efter de aktuelle sigt-/lysforhold i vandet.

Download Data sheet


Titel Filstørrelse Download
Data sheet 15" Video case model proXL 3 MB
Transportabel 15
Transportabel 15" HD-Videokufferter

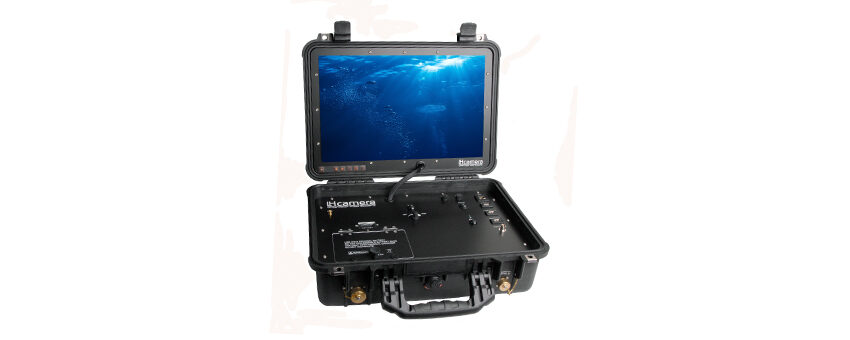

Portable HD Video Case

LH Camera supplies Portable HD Video Cases. Our cases offer outstanding versatility in connection with underwater operations. If necessary, the case can easily be carried from one place to another.

The system has a large 15” sunlight readable widescreen monitor. The monitor has an impressive 1000 nits (cd/m2) luminance, which means that you can view images on the display even in direct sunlight.

Our video cases have an integral HD recorder that stores HD video footage directly on a USB flash drive. You can view your footage directly on the case monitor and on a PC at your leisure. You can use footage to document performance of your task. You deliver a file directly to your customer. The system is supplied as standard with integral text overlay that allows you to superimpose depth, temperature and GPS coordinates onto images.

Technical specifications

15” sunlight readable 16:9 monitor, dimmer module, GPS module, video overlay, text module, USB HD video recorder with snapshot function, sound input to record sound from diver’s telephone, lithium ion battery pack, heavy-duty marine connectors – all built into an original Peli protective case.

Typical HD Video Case applications

  • Commercial diving, for documentation purposes
  • Marine biologists, scientific research, habitat and e.g. eelgrass bed surveys
  • Surveys undertaken from large or small vessels

Download Data sheet


Titel Filstørrelse Download

Customized solutions

LH Camera also provides customized solutions where we develop equipment and systems in close cooperation with the customer.

We work closely with a wide range of partners in electronics, computer and video industry, so no tasks are too small or too big for us.
